4200W 6200W Hybrid Inverter with inbuilt MPPT Controller

Name: 4200W 6200W Hybrid Inverter with inbuilt MPPT Controller
Brand: Guangzhou Anern Energy Technology Co., Ltd

AN-SCI-EVO-4200&6200 series hybrid inverter is an upgraded multi-functional on-grid off-grid inverter to offer uninterruptible power support in a portable size. With newly added dual AC output and an inbuilt MPPT solar controller, this 4200w 6200w solar inverter is suitable for residential and light commercial use.

Get Free Quote

PDF Download

Video

The Details of 4200W 6200W Hybrid Inverter with inbuilt MPPT Controller

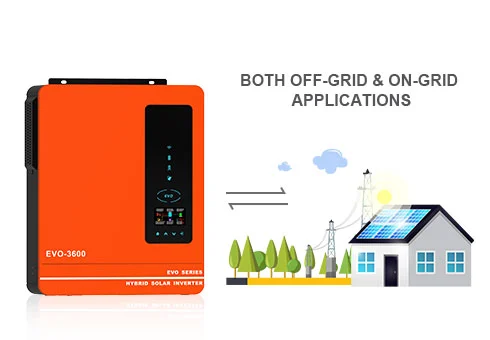

Compatible for both off-grid & on-grid applications, able to feed surplus solar power into the grid.

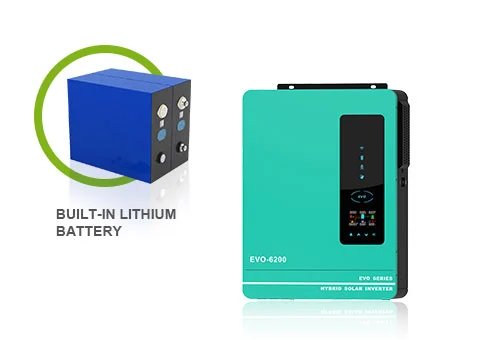

Built-in Lithium battery automatic activation, can activate the dormant lithium battery by charging.

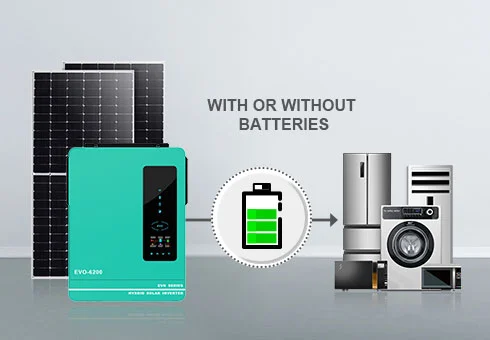

It can be used alone to supply the load with solar panels or city electricity, and it can be used normally without a battery.

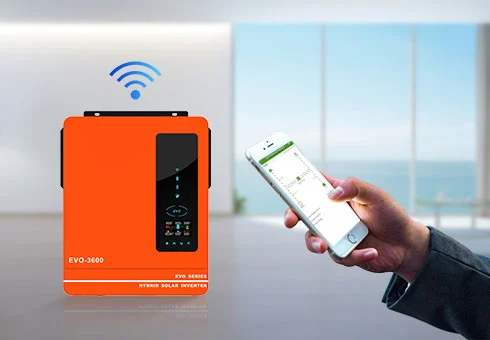

Optional WIFI monitoring function, you can check the running status of the hybrid inverter for solar system through APP at any time, and realize remote operation.

Key Features of 4.2kw 6.2kw Wholesale Mppt Solar Inverter:

Compatible for both off-grid & on-grid applications, able to feed surplus solar power into the grid;
Be able to run without battery;
One-key restoring to factory default settings;
Built-in Lithium battery automatic activation;
Built-in MPPT solar controller, max charge current 120A;
Max 6200W & 6500W solar input power respectively;
Wide PV input voltage range (90-450VDC);
Built-in anti-dusk kit for harsh environments.
Smart battery charge design to maximize battery lifespan

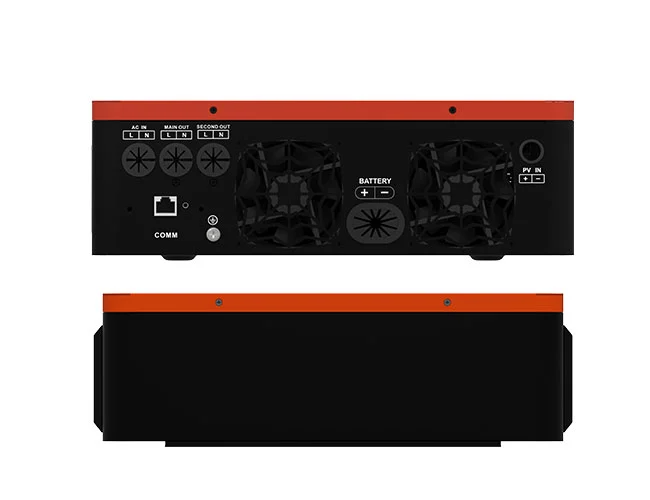

Dual AC output;
WIFI available for IOS and Android systems.

Specification of 4200W 6200W Hybrid Inverter with inbuilt MPPT Controller

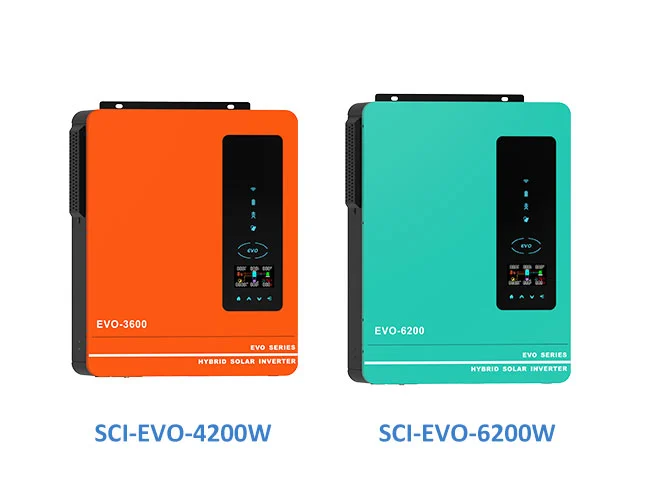

Model	SCI-EVO-4200	SCI-EVO-6200
RATED POWER	4200W	6200W
Maximum PV Input Power	6200W	6500W
GRID-TIED OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage	90VDC/120VDC
MPPT DC Voltage Range	90-450VDC
Number of MPPT Trackers/Maximum Input Current	1/27A
GRID OUTPUT (AC)
Nominal AC Output Voltage	220/230/240VAC
AC Output Voltage Range	195.5-253VAC
Nominal AC Output Current	15.7A	27.0A
Power Factor	>0.99
Feed-in Grid Frequency Range	49-51±1Hz / 59-61±1Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)	98%
TWO LOADS OUTPUT POWER
Full Load	4200W	6200W
Maximum Main Load	4200W	6200W
Maximum Second Load (battery mode)	1400W	2067W
Main Load Cut Off Voltage	22VDC	44VDC
Main Load Return Voltage	26VDC	52VDC
OFF-GRID OPERATION
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable AC Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	30A	40A
Nominal Operating Frequency	50/60Hz
Surge Power	8400W	12400W
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	24VDC	48VDC
Maximum Charging Current(Solar to AC)	120A
Maximum AC Charging Current	100A
GENERAL
Dimension, D x W x H (mm)	420350110mm	450350110mm
Net Weight (kgs)	9	10
Communication interface	WIFI
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	–10°C - 50°C
Storage Temperature	–15°C - 60°C
