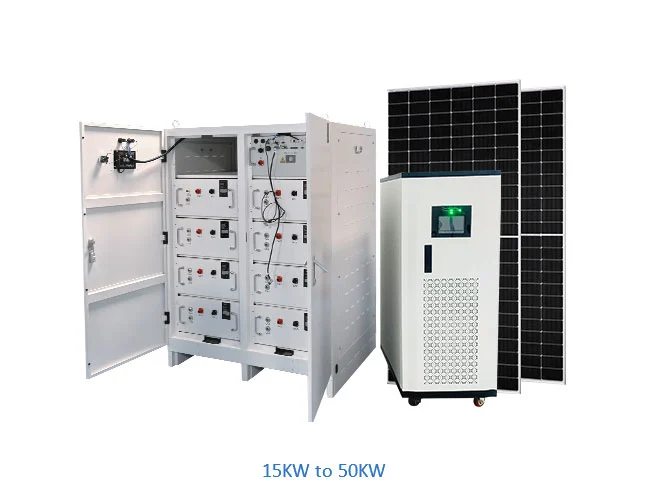

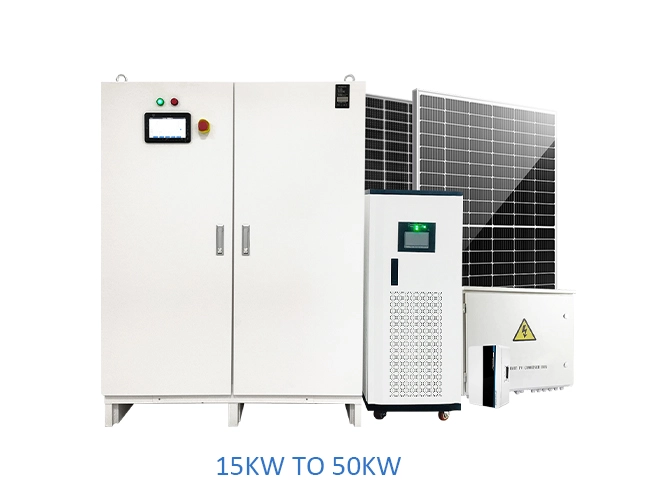

15KW-50KW Commercial Off Grid Solar Power Storage System

These 15kw to 50kw three phase commercial solar power supply systems are mainly aimed at high-power commercial and industrial electricity applications.  If your house has many high-power appliances and the daily power consumption is large, then the 15KW 20KW 30KW 50KW off grid solar energy systems are prepared for this.

This series of off grid solar solutions can carry up to 50KW of electrical appliances, and the maximum power generation is 200KWH per day.


The 15KW-50KW off grid energy system is a robust solar power solution for meeting the high-power demands of commercial and industrial applications, providing reliable and sustainable electricity supply even in remote or off-grid locations.

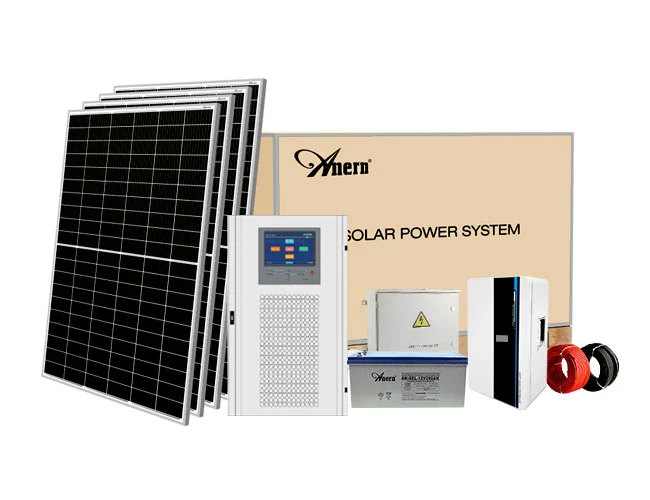

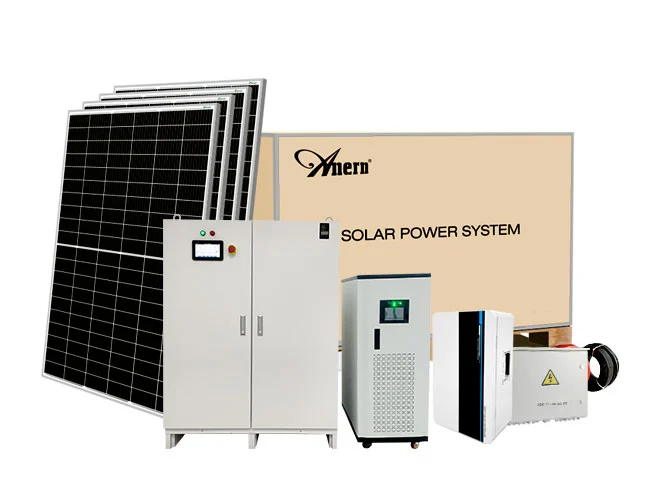

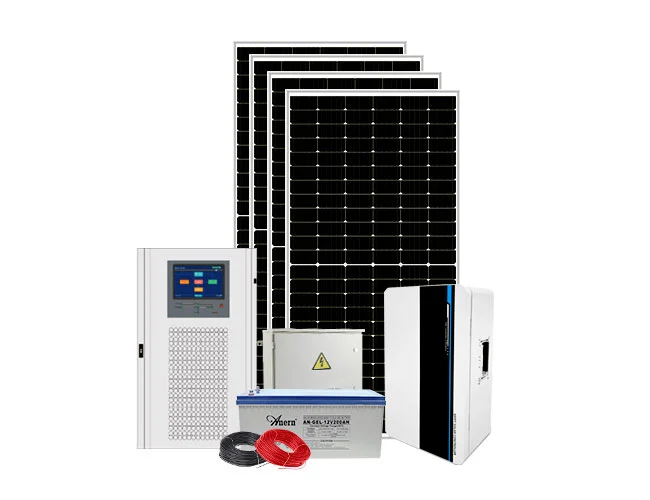

The Details of 15KW-50KW Off Grid Solar Storage System

Rated DC96V/DC192V input, AC220V 1-phase output; Frequency: 50 Hz +/- 0.5%True sine-wave, off-grid type; LCD display of operating parameters; • Protections: Short circuit, overload, surge current, ov...

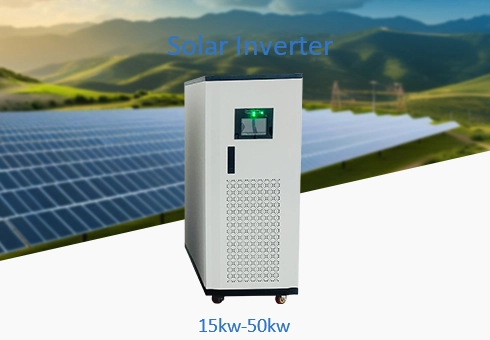

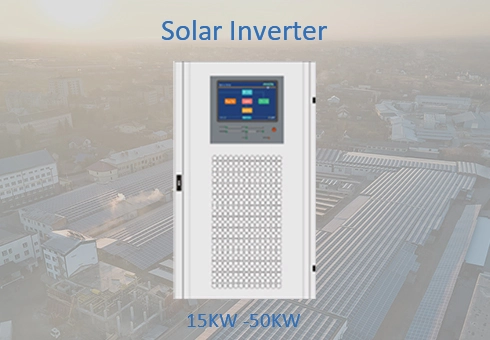

Rated DC192V / DC360V input, AC380V 3-phase output;

Frequency: 50 Hz +/- 0.5%

True sine-wave, off-grid type; LCD display of operating parameters;

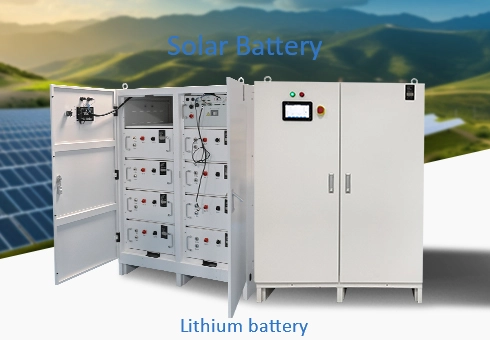

Lithium Battery: Deep cycle、Free Maintenance、Fully sealed

Lithium Battery: Deep cycle、Free Maintenance、Fully sealed

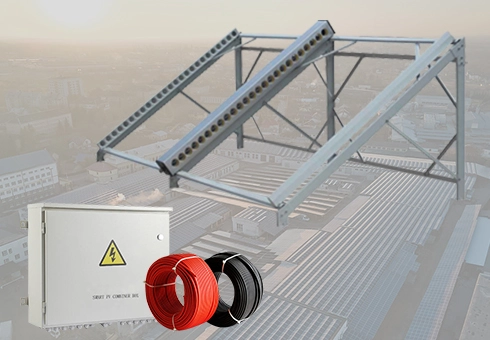

PV Array Combiner, Solar Panel Rack, Cables- Wide range of DC input voltage- IP65 guard level, suitable for outdoor- Reliable thunderstorm & surge protection

PV Array Combiner, Solar Panel Rack, Cables

- Wide range of DC input voltage

- IP65 guard level, suitable for outdoor

- Reliable thunderstorm & surge protection

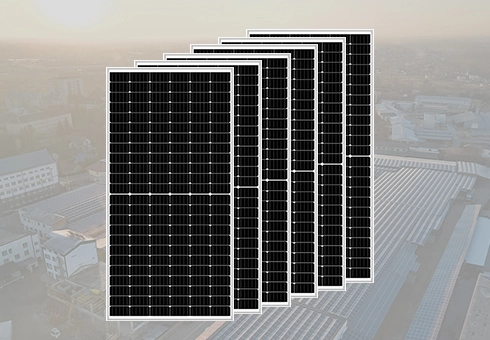

Type: Half-cell Monocrystalline PV ModuleMax Power: 550W25 years power output guarantee

Type: Half-cell Monocrystalline PV Module

Max Power: 550W

25 years power output guarantee


The Details of 15KW-50KW Off-Grid Solar Storage System


  • Full power, the high conversion rate of solar panels, with the maximum single solar panel power up to 550W, and a service life is up to 25 years, which greatly improves the power generation per unit area.

  • The lithium battery has low self-discharge and long service life.

  • Using an MPPT controller, the conversion efficiency is as high as 98%.

  • It can be equipped with a WIFI remote monitoring system, and users can read the system operation status through a mobile APP at any time.

  • Solar panels use cells with a conversion efficiency of up to 22%. The same number of solar panels will generate more power.

  • The optional WIFI monitoring module can monitor the power generation and operation of the system through the mobile phone APP.



The Specification of the 15KW-50KW Off-Grid Hybrid Solar Storage System


Model

OFF-SGHP-15KW

OFF-SGHP-20KW

OFF-SGHP-30KW

OFF-SGHP-50KW

Solar Panels Rated Power

15KW

20KW

30KW

50KW

Inverter Rated Output Power

15KW

20KW

30KW

50KW

Daily Power Consumption

>60KWH

>80KWH

>120KWH

>200KWH

Solar Panel

27pcs 550w

36pcs 550w

56pcs 550w

91pcs 550w

Solar Inverter

1pcs 15KW

1pcs 20KW

1pcs 30KW

1pcs 50KW

Lithium Battery

58KWH

80KWH

116KWH

215KWH

PV Charge controller

192V 80A

384V 60A

384V 80A

384V 80A

PV Array Combiner

1pcs

1pcs

1pcs

1pcs

Solar Panel Rack

Roof-type mounting rack including complete fittings, aluminum alloy (Rack can be customized per request)


The Production of 15KW-50KW Solar Storage System

Solar power system accessories are on mass production. Our company strictly follows the international standards for solar products production and carries out a detailed division of labor for the assembly process of each accessory to ensure that each process has quality inspections. The final product will also undergo at least 48 hours of continuous aging to ensure that every solar component can meet the client's requirements.




Products
FAQs of 15KW-50KW Off Grid Solar Power Storage System

FAQs of 15KW-50KW Off Grid Solar Power Storage System

  • Q
    How much space does a 10kw solar system need?
    A

    The amount of space required for a 10 kW solar system can vary depending on the type and efficiency of the solar panels, as well as the mounting system used for installation. Anern 10kw solar power system need around 20pieces of 450w half cut cell monocrystalline pv module, each with an area of around 2.9 square meters, for a total area of 41.8 square meters. This is just an estimate and the actual size can vary depending on the specific factors mentioned above.

  • Q
    How big is a 20kw solar system?
    A

    The size of a 20 kW solar system can vary depending on the efficiency of the solar panels and the amount of space available for installation. Anern 20kw solar power system need around 27pieces of 550w half cut cell monocrystalline pv module, each with an area of around 2.42 square meters, for a total area of 65.34 square meters.  The actual size may also depend on factors such as the type of mounting system used and the layout of the solar panels.

  • Q
    How many kwh does a 20kw solar system produce?
    A

    The amount of electricity produced by a 20 kW solar system can vary depending on various factors, such as the location, weather conditions, and the efficiency of the solar panels. However, as a rough estimate, a 20 kW solar system can produce around 56-62 kWh (kilowatt-hours) of electricity per day, on average, assuming around 4-5 hours of peak sunlight hours. This can add up to around 20,160-22,620 kWh per year. It's important to note that this is only an estimate and the actual output can vary based on several factors.

  • Q
    How much does a 10kw solar system produce per day?
    A

    The amount of electricity produced by a 10 kW solar system can vary depending on several factors, such as the location, weather conditions, and the efficiency of the solar panels. On average, a 10 kW solar system can produce around 20-36 kWh (kilowatt-hours) of electricity per day, assuming around 4-5 hours of peak sunlight hours. However, the actual output can vary based on several factors, such as the orientation and tilt of the solar panels, shading, and weather conditions.
