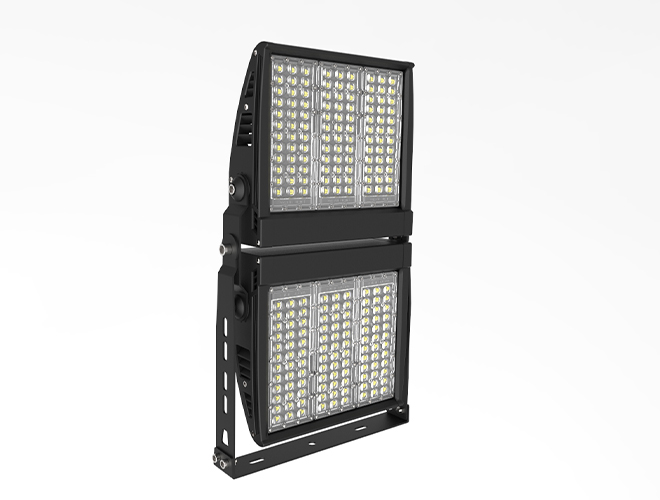

Big High Power LED Flood Light

AN-TGD05 series high power led flood light, launched in 2022, is one of Anern led outdoor lights specific for engineering lighting. With led modular designs, these high-power floodlights can effectively solve the heat dissipation problem of high-power lamps. Meanwhile, each module is equipped with a special optical design lens, which can be selected with a wide-angle or narrow-angle illumination range according to the lighting requirements. In addition, this type of LED floodlight can also be used in squares, football courts, basketball courts, gymnasiums, and other places with higher lighting requirements. If you are interested in the big flood lights, please connect with us.  As a professional led floodlight supplier, Anern can also provide specific lighting solutions according to the detailed information of the application site.



The Details of Big High Power Led Flood Light (TGD05)

High Power LED Flood Light

Equipped with Philips 5050 led chips, the highest luminous efficiency of these led flood lights wholesale can reach 150lm/w.


High Power Flood Lights

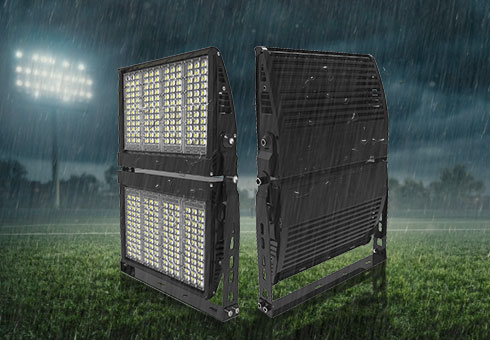

With a built-in waterproof driver and housing protection, these LED high-power flood lights can be placed under circumstances with low temperature and its waterproof level up to IP66.


High Power LED floodlight

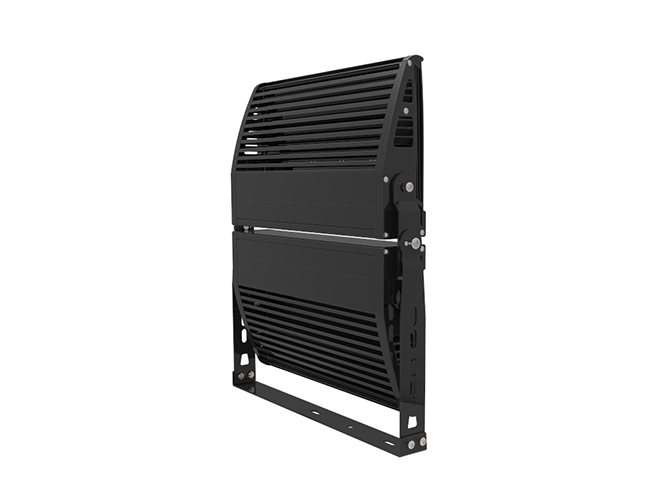

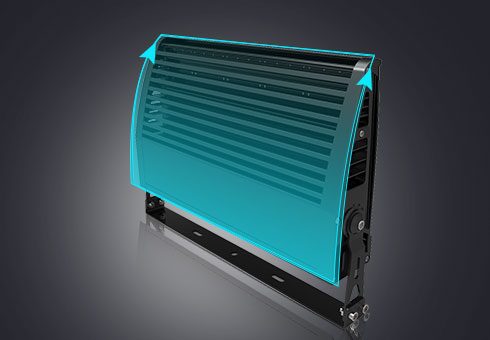

With streamlined housing design, smaller cross-sectional area, lower wind resistance.


LED High Power Flood Light

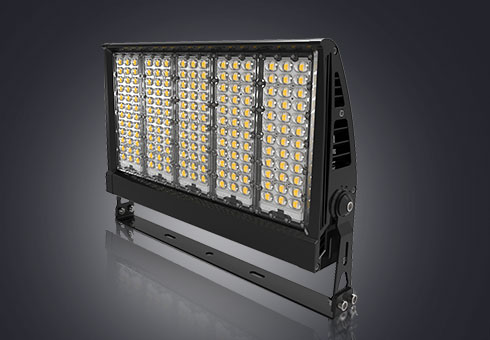

Using Japanese optical design lens, with features of high precision, high light transmittance, no yellowing, UV resistance.

The Specification of High Power Led Flood Light (TGD05)


Model

LED chip

Flux

CRI

Working Voltage

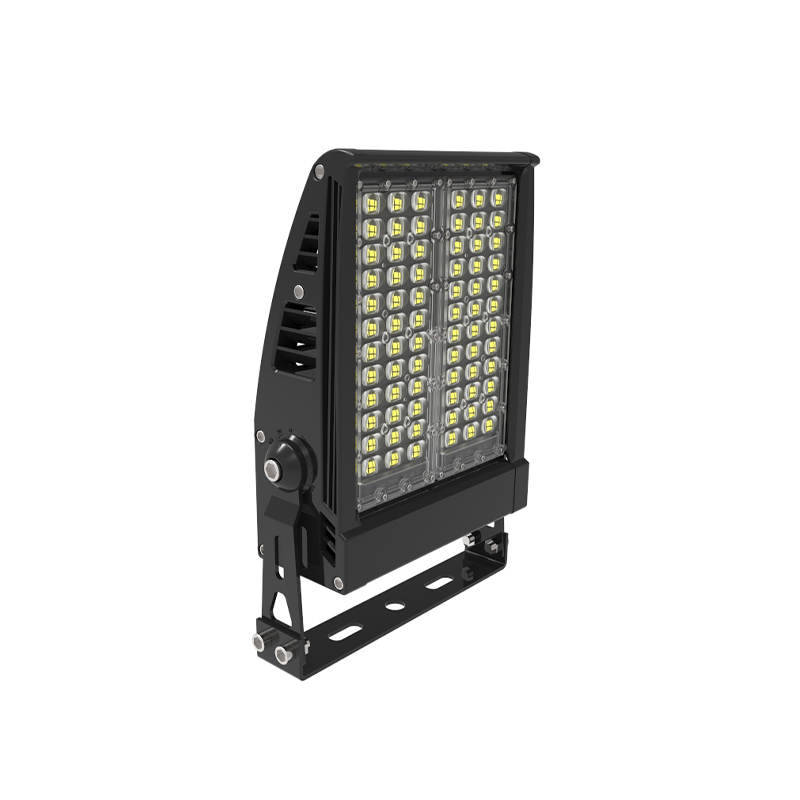

AN-TGD05-200W LED Flood Light

Lumileds

150lm/w

>70

AC85-265V

AN-TGD05-300W LED Flood Light

Lumileds

150lm/w

>70

AC85-265V

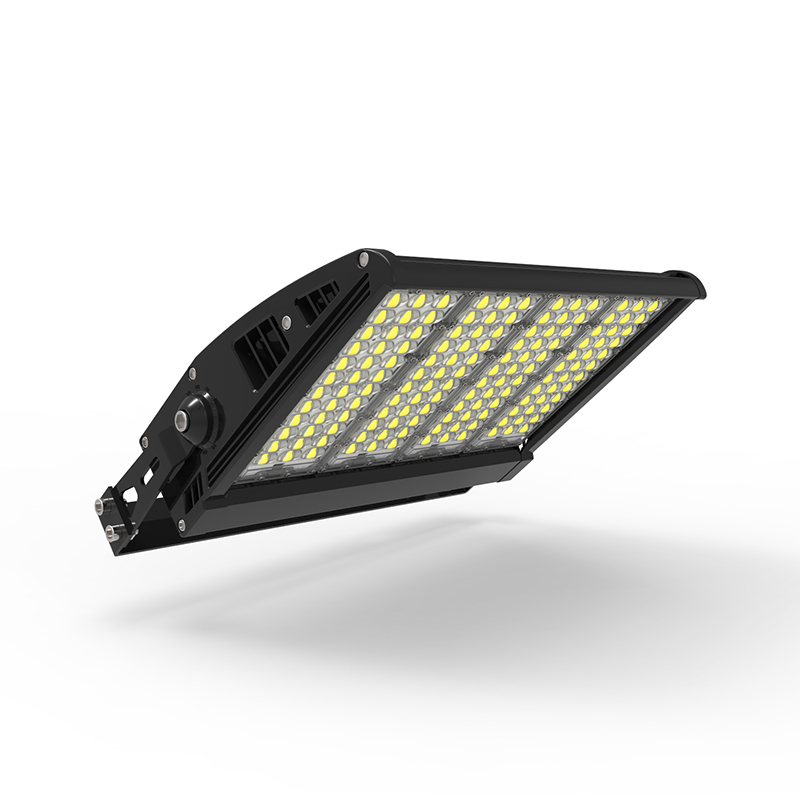

AN-TGD05-400W LED Flood Light

Lumileds

150lm/w

>70

AC85-265V

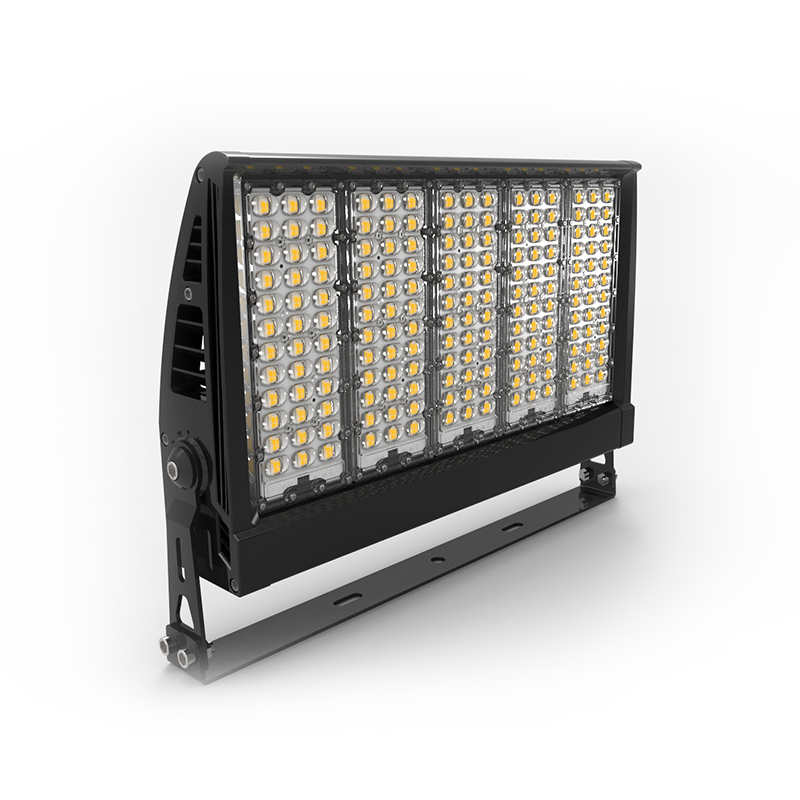

AN-TGD05-500W LED Flood Light

Lumileds

150lm/w

>70

AC85-265V

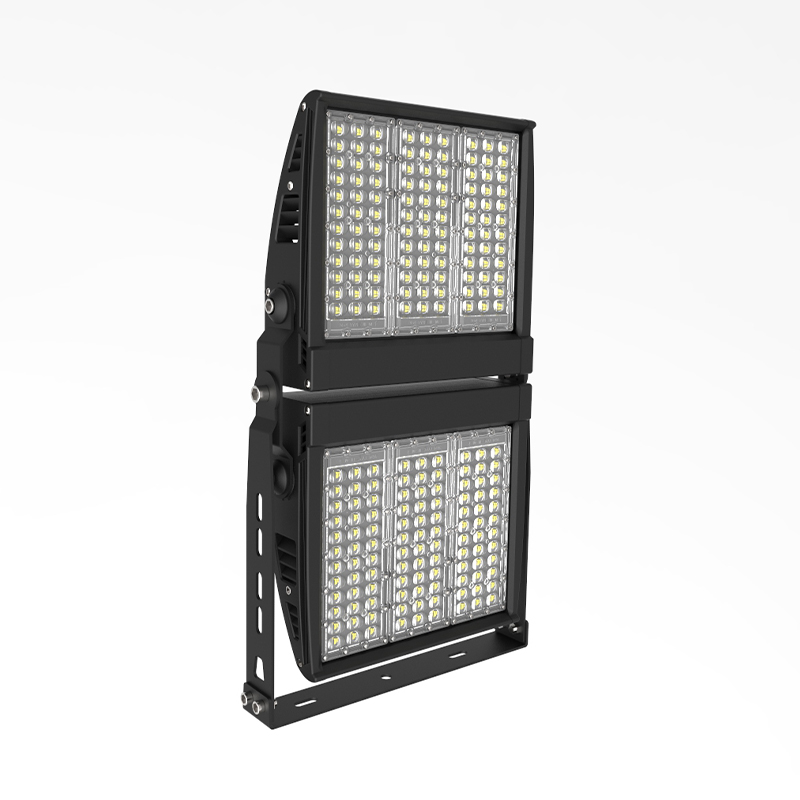

AN-TGD05-600W LED Flood Light

Lumileds

150lm/w

>70

AC85-265V

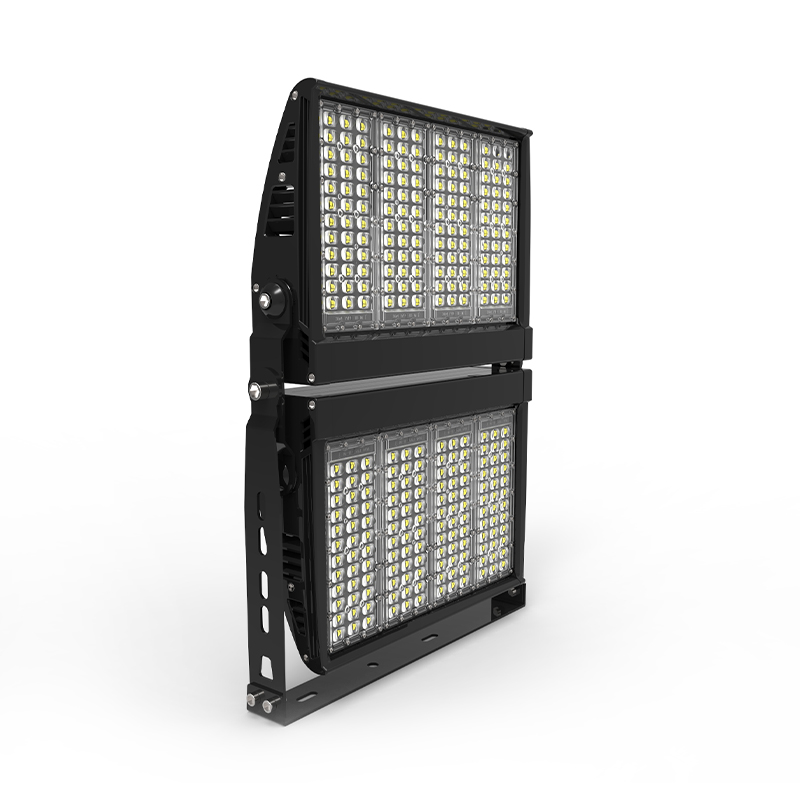

AN-TGD05-800W LED Flood Light

Lumileds

150lm/w

>70

AC85-265V

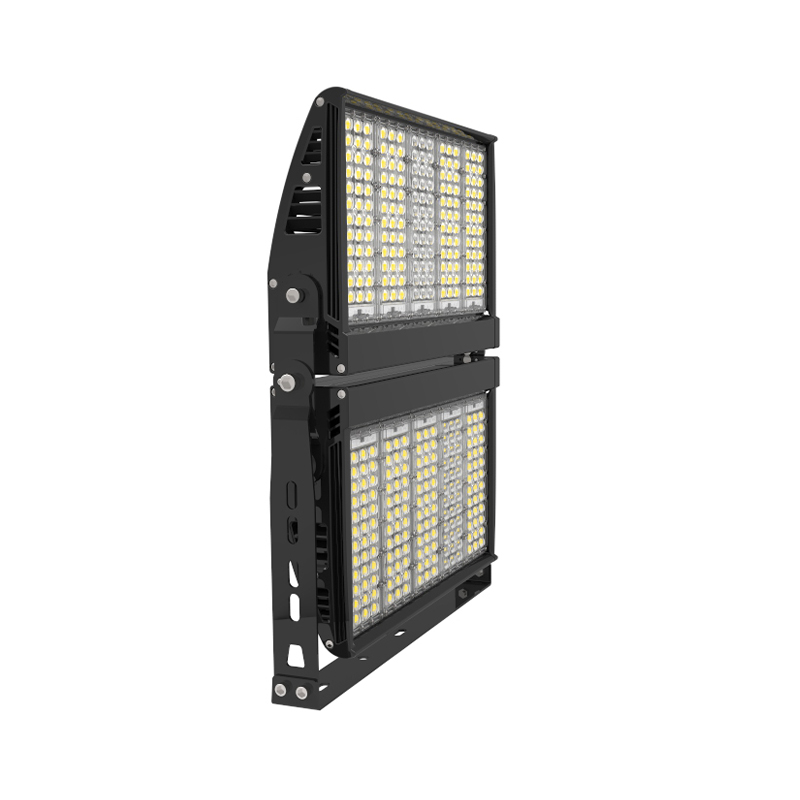

AN-TGD05-1000W LED Flood Light

Lumileds

150lm/w

>70

AC85-265V



The Installation Instruction of High Power Led Flood Light(TGD05)

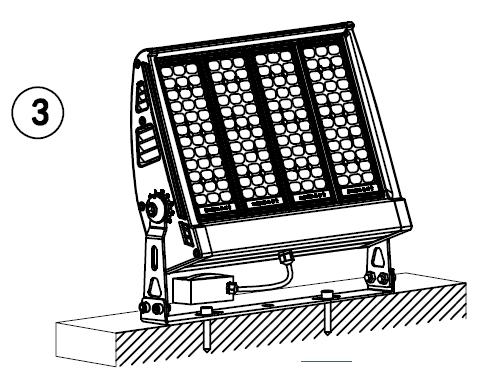

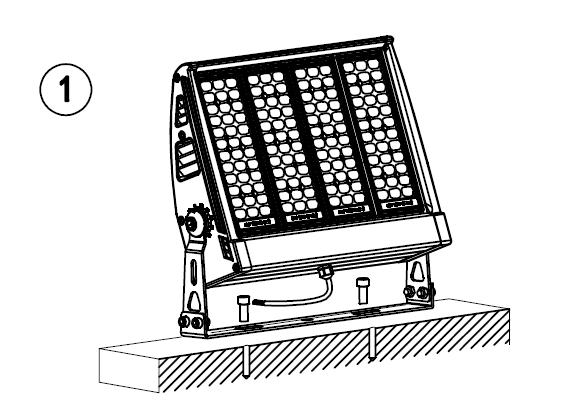

Make holes on the mounting surface as required and fix the lamps firmly.

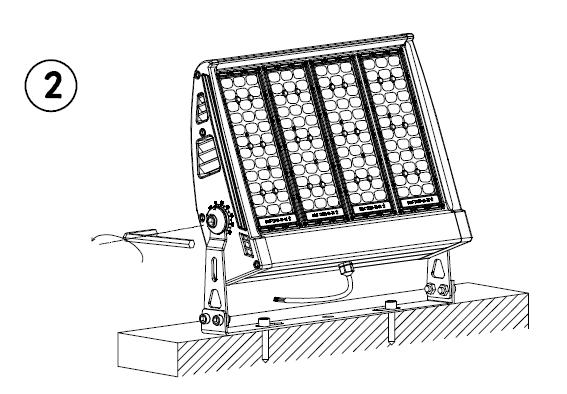

Use a hex wrench to loosen the screws on both sides of the plug lock bracket, then adjust to a proper angle and lock it.




Connect the neutral wire, live wire and ground wire of the lamp to the city wire as required.
