In the field of solar lighting and energy storage in the past two years, lithium lifepo4 solar battery has gradually replaced traditional batteries to become the new mainstream of the market. Compared with traditional lead-acid and gel batteries, lithium lifepo4 solar battery has the characteristics of high working voltage, high energy density, low self-discharge rate, and no memory effect. The lithium lifepo4 solar battery independently developed by Anern is mainly used to match solar energy storage systems, whether lifepo4 battery for solar storage is a household power supply system or a commercial power supply system.

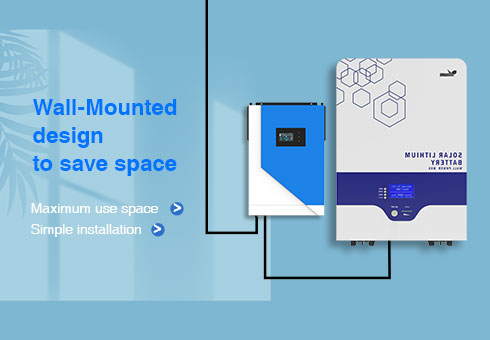

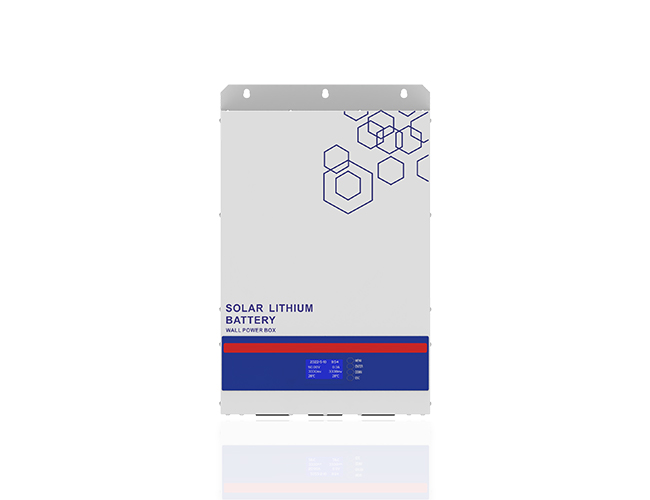

Wall-mounted appearance design, simple installation, convenient use, and save more space.

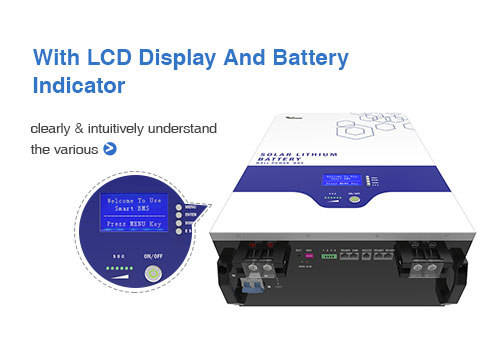

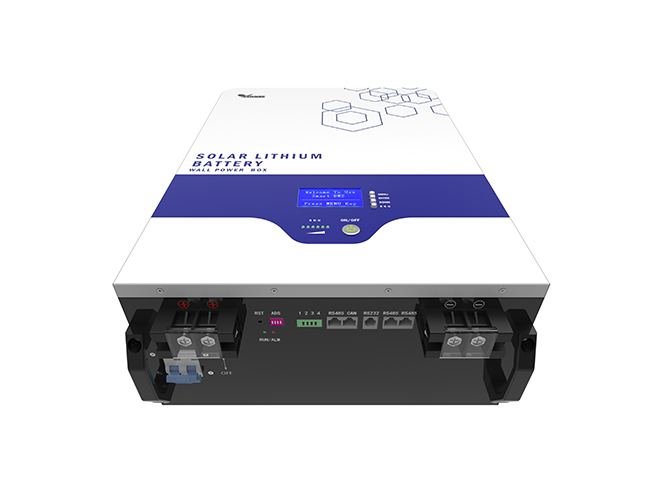

With an LCD display and battery indicator, you can clearly and intuitively understand the various states of battery usage.

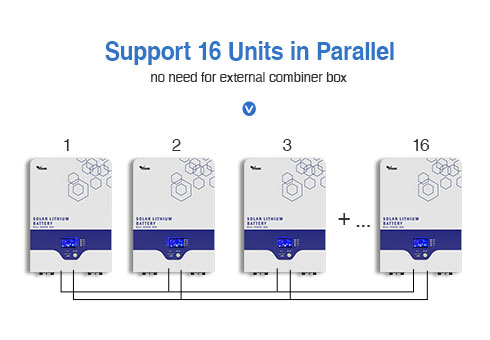

Self-developed BMS system is safe and stable. At the same time, it can realize up to 16 groups of batteries in parallel, which can flexibly expand the power storage of the system.

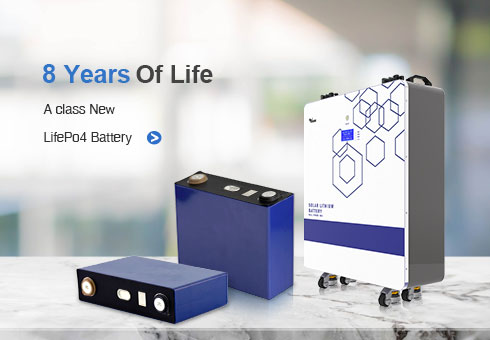

Adopt brand new lithium iron phosphate batteries, reject second-hand batteries, ensure the safe and stable operation of the batteries, and have a service life of up to 8 years.
Model | Capacity | Voltage | Maximum Charging Current | Maximum Continuous Discharge Current |
AN-LPB24200 | 200AH | 25.6V | 100A | 150A |
AN-LPB48100 | 100AH | 51.2V | 50A | 100A |
Model | AN-LPB-N-24100 | AN-LPB-N-24200 | AN-LPB-N-48100 | AN-LPB-N-48200 | |
Battery Type | LiFePO4 | ||||
Typical Capacity(AH) | 100AH | 200AH | 100AH | 200AH | |
Typical Voltage(V) | 25.6V | 25.6V | 48V | 48V | |
Voltage Working Range(V) | 21.6-29.2V | 21.6-29.2V | 40.5-54.75V | 40.5-54.75V | |
Working Temperature(°C) | Charge: 0-+55°C Discharge: -20-+60°C | ||||
Storage Temperature(°C) | -20-+35°C | ||||
Nominal Capacity(KWH) | 2.56KWH | 5.12KWH | 4.8KWH | 9.6KWH | |
Max. Charge Current(A) | 50A | 50A | 50A | 50A | |
Max. Discharge Current(A) | 100A | 100A | 100A | 100A | |
Cycle Life | >6000 | ||||
SOC Accuracy | <8% | ||||
Dimension(mm) | 580*400*160mm | 580*400*160mm | 580*400*160mm | 770*500*160mm | |
Weight(kg) | 32kg | 54kg | 55kg | 85kg | |
IP Grade | IP54 | ||||
Transportation SOC | 30% | ||||
Cooling | Nature | ||||
Communication | RS232, RS485, CAN | ||||
Certifications | CE, ROHS, UN38.3, MSDS |
Anern insists on innovating the craftsmanship spirit of enabling products to provide customers with professional lithium battery solutions. Our automatic lithium battery laser spot welding machine with advantages of fast welding speed, small heat-affected zone, small workpiece deformation, a high degree of automation, and good consistency.
Save money - with manufacturer direct pricing
Save time - with experienced team to get project done
Lead the industry - with the most cutting-edge products
