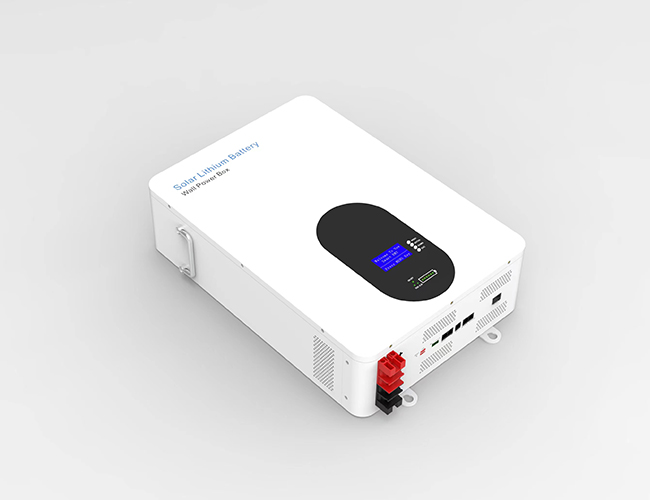

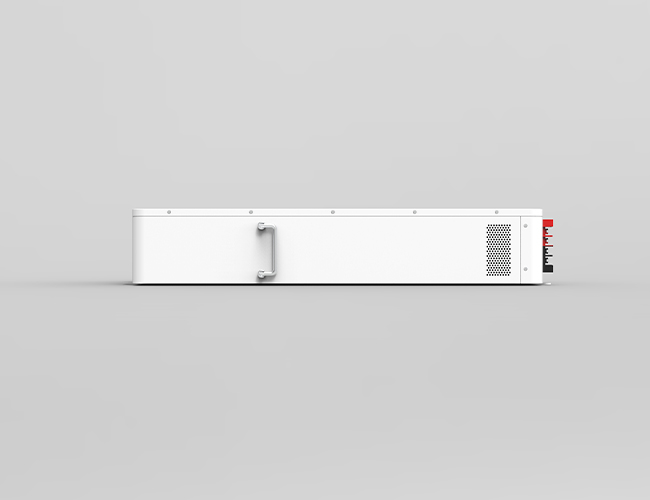

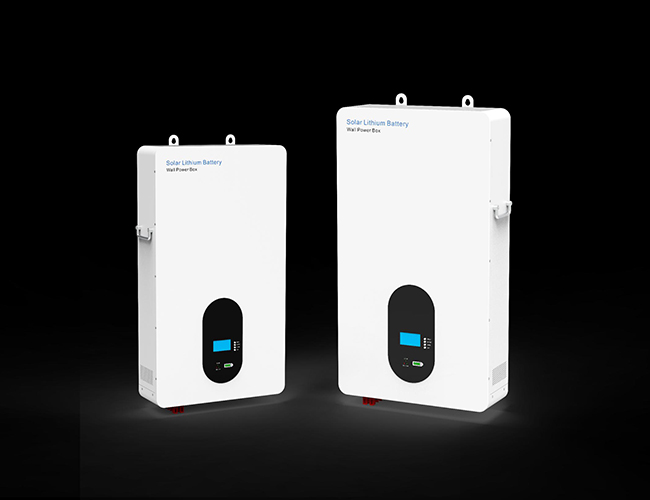

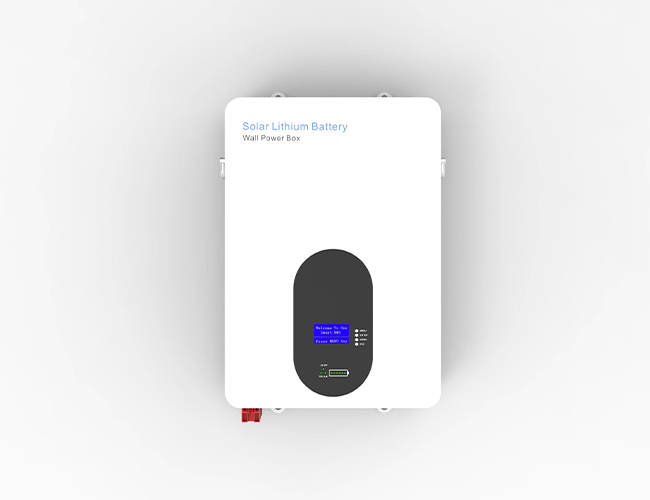

Lithium ESS 48V 100ah 150ah 200ah Wall Mounted Lifepo4 Battery(LPB-T)

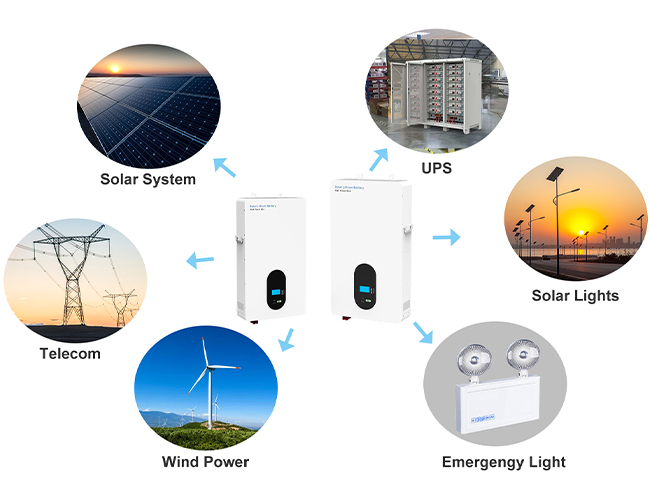

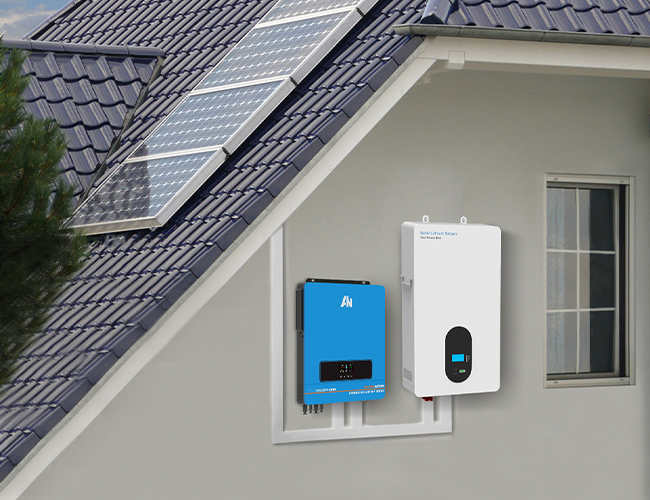

AN-LPB-T series is a wall-mounted lifepo4 lithium battery storage system. LPB-T series lifepo4 lithium battery packs adopt high-performance processor and international brand devices, which is cost-effective and high reliability. Built-in high-quality LiFePo4 prismatic large-capacity CATL battery cells ensure that the battery system provides a high cycle life span. It is a perfect solar energy lithium battery for solar project/industrial/residential use.


The Details of Wall-mounted LiFePO4 Lithium Battery Pack (AN-LPB-T)

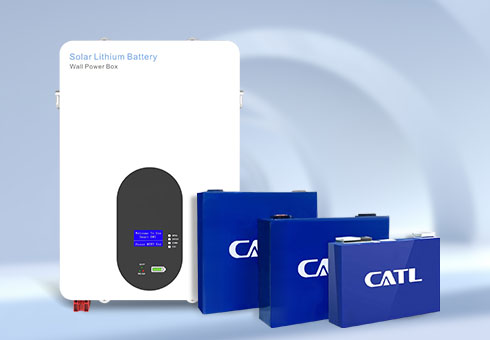

Built in the most stable CATL battery cells-the leader of lithium electricity, the cycles are more than 6000 times under 95% DOD, which is much safer and more reliable.

Built in the most stable CATL battery cells-the leader of lithium electricity, the cycles are more than 6000 times under 95% DOD, which is much safer and more reliable.

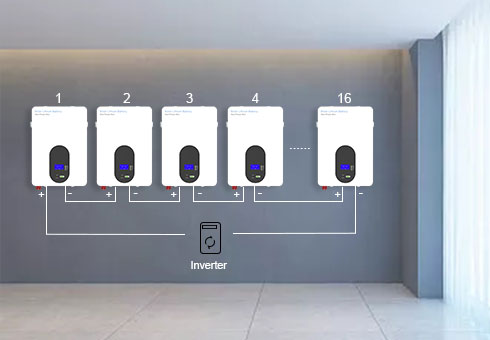

The capacity of wall-mounted LiFePO4 lithium battery pack can be connected in Parallel to store more energy and meet the needs of capacity requirement.

The capacity of wall-mounted LiFePO4 lithium battery pack can be connected in Parallel to store more energy and meet the needs of capacity requirement.

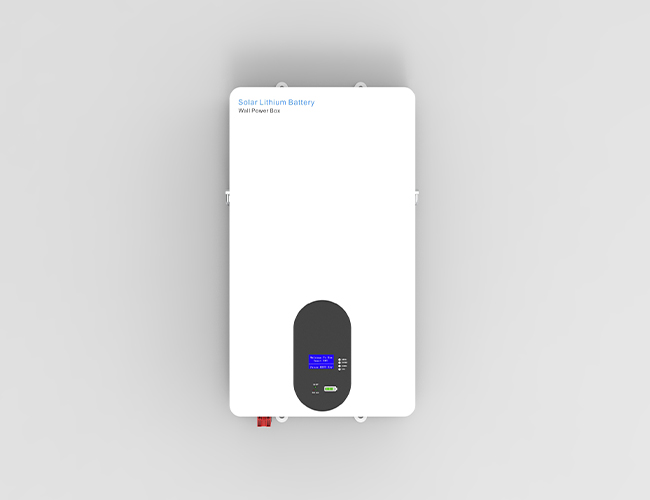

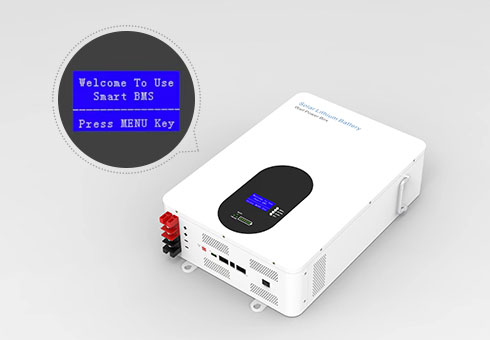

With LCD display, can show various parameters of battery operation.

With LCD display, can show various parameters of battery operation.

BMS (Battery Management System) can flexibly adjust the charge and discharge of the solar powerwall battery according to the actual use of the solar system, and protect the battery from overcharge and...

Highly compatible BMS can flexibly adjust the charge and discharge of the LiFePO4 lithium battery pack according to the actual use of the solar system, and protect the battery from overcharge and overdischarge.

Leading Features of Lithium ESS 48V 100ah 150ah 200ah Wall Mounted Lifepo4 Battery

◆ Long service life of over 5 years;

◆ Modular design, small size and lightweight;

◆ One key switch machine, the operation is more convenient;

◆ Suitable for long-term charge and discharge cycles;

◆ Adopt multi-level energy consumption management;

◆ Multiple parallel machines, automatic address acquisition without manual operation;

◆ Support high-current charging and discharging: 100A charging and discharging;

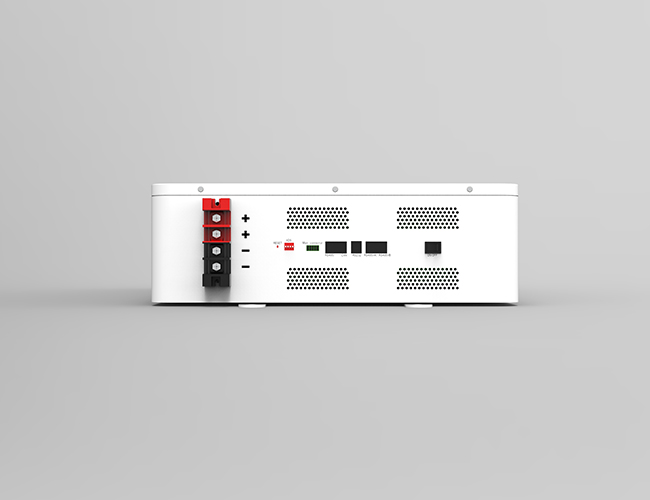

◆ Front operation and front wiring are convenient for installation and maintenance;

◆ Adopt high-performance processor, international brand devices, high reliability;

◆ Multiple communication interfaces: RS485, RS232, CAN;

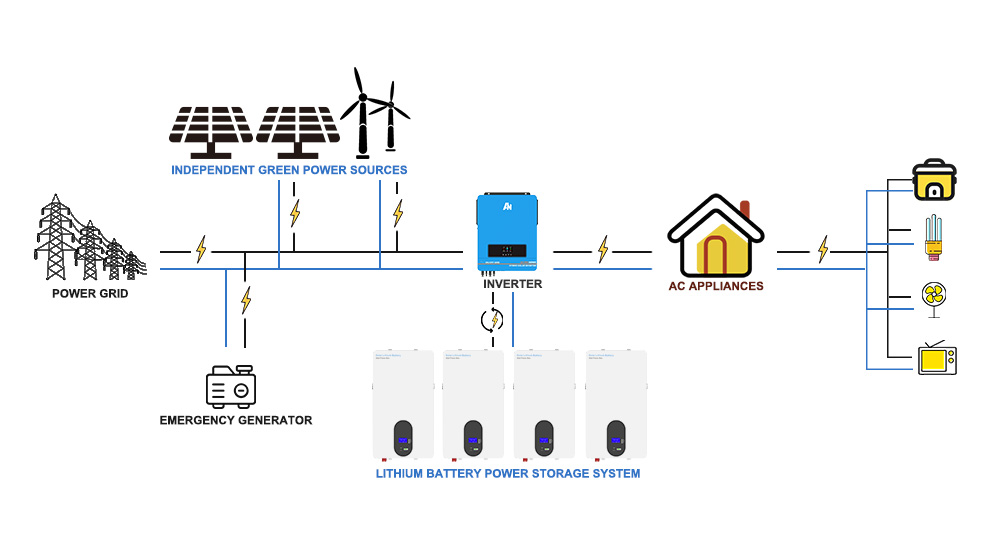

◆ Highly compatible BMS, seamless connection with energy storage inverter;

◆ Perfectly compatible with our inverter;

◆ Safety certification: CE, ROHS, UN38.3, MSDS, etc.

Lithium_ESS_48V_100ah_150ah_200ah_Wall_Mounted_Lifepo4_Battery(LPB-T)

The Specification of Wall-mounted LiFePO4 Lithium Battery Pack

Model

AN-LPB-T-48100

AN-LPB-T-48150

AN-LPB-T-48200

Battery Type

LiFePO4

Typical Capacity(AH)

100AH

150AH

200AH

Typical Voltage(V)

48V

48V

48V

Energy storage(Kwh)

4.8Kwh

7.2Kwh

9.6Kwh

Voltage Working Range(V)

42-54.8V

42-54.8V

42-54.8V

Working Temperature(°C)

Charge: 0-+55°C

Discharge: -20-+60°C

Storage Temperature(°C)

0-+40°C

Max. Charge Current(A)

100A

100A

100A

Max. Discharge Current(A)

120A

120A

120A

Cycle Life

>6000

SOC Accuracy

<8%

Dimension(mm)

590*410*155mm

860*485*155mm

860*485*155mm

Weight(kg)

47kg

86kg

86kg

IP Grade

IP54

Cooling

Nature

Communication

RS232, RS485, CAN

Certifications

CE, ROHS, UN38.3, MSDS
