How to Install a Solar Street Light?

As the world shifts toward sustainable energy, solar street lighting has emerged as a cost-effective, eco-friendly, and reliable solution for illuminating roads, parks, and pathways. Unlike traditional street lights, solar-powered systems are independent of the utility grid, meaning they require no extensive trenching or cabling.

However, the performance and longevity of a solar lighting system depend heavily on proper installation. Whether you are a contractor or a project manager, following a standardized installation protocol is essential.

Pre-Installation Preparation

Before any physical work begins, preparation is key to ensuring the project runs smoothly.

Site Inspection

Ensure the installation site receives ample sunlight throughout the day. Avoid areas shaded by tall buildings, trees, or billboards. Even partial shading can significantly reduce the energy conversion efficiency of the solar panel.

Tool Checklist

You will need the following tools:

• Lifting crane or hoist for tall poles

• Wrench set in various sizes

• Multimeter

• Screwdrivers and pliers

• Safety gear (helmets, gloves, high-visibility vests)

• Concrete and shovel for the foundation

Product Inspection

Unpack your solar street light kits and verify that all components are present:

1. Solar panel

2. LED light fixture

3. Solar battery, often integrated or in a separate box

4. Intelligent controller

5. Light pole and brackets

6. Connection wires and mounting bolts

At this stage, it is wise to choose a reputable manufacturer. Anern offers integrated and split-type solar street lights that are designed for easy assembly, significantly reducing the labor time required during this phase.

Foundation Construction

The foundation is the most critical part of the installation of solar street light as it ensures the stability of the pole against wind and environmental stress.

1. Digging the Pit: Dig a hole based on the height of the pole and the soil conditions. Typically, for a 6-meter pole, the pit should be about 1 meter deep and 0.5 meters wide.

2. Placing the Anchor Bolts: Place the foundation cage into the pit. Ensure the bolts are level and centered.

3. Pouring Concrete: Fill the pit with C25 or higher-grade concrete. Use a PVC pipe to create a path through the center of the foundation for the battery cables, if the battery is to be buried.

4. Curing: Allow the concrete to cure for at least 72 hours before attempting to mount the pole.

Component Assembly

It is much safer and more efficient to assemble the components on the ground before erecting the pole.

Installing the Solar Panel Bracket

Fix the solar panel onto its support bracket using the provided bolts. Ensure the panel is angled correctly to capture maximum sunlight. The angle usually corresponds to the latitude of the installation site.

Installing the LED Light Fixture

Attach the LED lamp arm to the pole. Feed the wires through the arm and out of the pole’s access hole. Ensure the lamp is tightened securely to prevent vibration damage.

Battery and Controller Setup

If you are using an all-in-one solar street light system from Anern, the battery and controller are already integrated into the lamp head, simplifying this step. For split-type systems:

• Place the battery in its protective box, either on the pole or in a buried underground tank.

• Connect the wires to the controller, following the specific sequence: Battery first, then Solar Panel, and finally the Light Fixture. This prevents the controller from short-circuiting.

Wiring and Testing

Proper wiring is the heart of a solar street light. Most modern systems use waterproof connectors to prevent moisture ingress.

1. Check Polarity: Always use a multimeter to check the positive and negative poles of the solar panel and battery.

2. Turn-On Test: Before hoisting the pole, simulate night-time by covering the solar panel with a piece of cardboard. The LED light should turn on within a minute. Remove the cover, and the light should turn off. This confirms the controller and sensors are working perfectly.

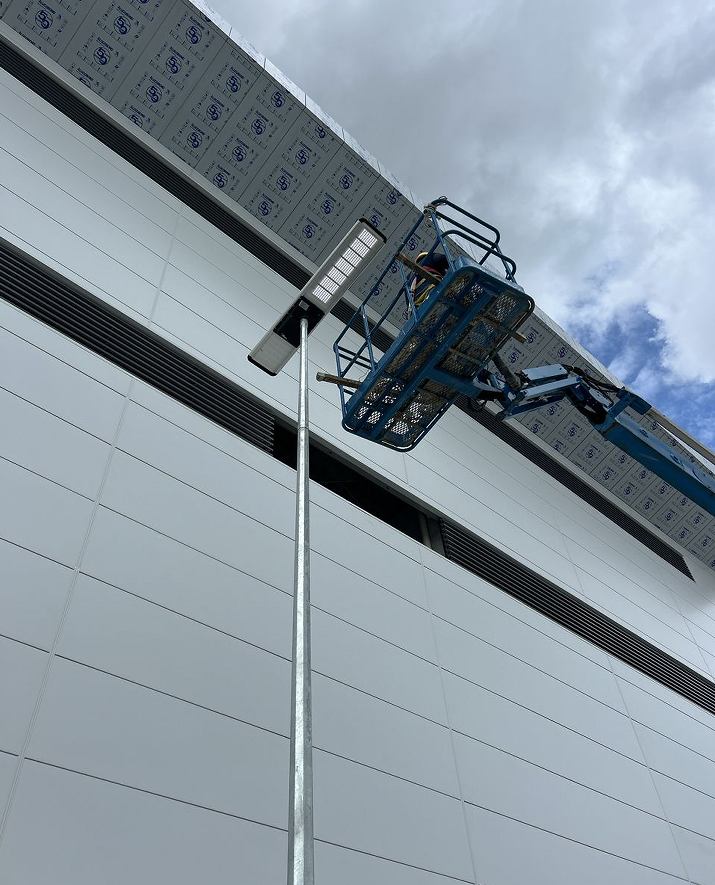

Erecting the Light Pole

Once the ground assembly and testing are complete, it is time to lift the pole.

1. Hoisting: Use a crane or a manual pulley system to lift the pole. Use a lifting rope attached to the upper third of the pole to maintain balance.

2. Securing the Base: Align the pole’s base plate with the anchor bolts in the foundation. Drop the pole onto the bolts and secure them with washers and nuts.

3. Leveling: Use a spirit level to ensure the pole is perfectly vertical. Adjust the nuts under the base plate if necessary to level the structure, then tighten everything securely.

Final Adjustment and Cleanup

With the pole standing, perform the final checks:

• Directional Check: Ensure the solar panel is facing the equator (South in the Northern Hemisphere, North in the Southern Hemisphere).

• Hardware Check: Ensure all bolts and nuts are tightened to the required torque.

• Site Cleanup: Remove all packaging materials and excess soil.

Maintenance Tips for Longevity

Solar street lights are low-maintenance, but they are not no-maintenance. To ensure your solar lights last for their full design life:

• Clean the Panels: Dust and bird droppings can reduce efficiency by 20% or more. Clean the panels with water and a soft cloth every 6–12 months.

• Battery Health: If the light starts dimming earlier than usual, check the battery connections. LiFePO4 batteries, used in high-end Anern products, typically last 5–8 years.

• Check Enclosures: Ensure the battery box and controller housing remain sealed against water and insects.

Why Choose Anern for Your Solar Projects?

When searching for reliable solar street lighting system, the manufacturer you choose is just as important as the installation process. Anern stands out as a global leader in renewable energy solutions. Their products are engineered to withstand harsh environments, featuring:

• High-Lumen Output: Utilizing Bridgelux or Philips LED chips for maximum brightness.

• Long-Life Batteries: Advanced lithium battery technology with deep cycle protection.

• Customizable Designs: Whether you need All-in-Two, All-in-One, or split-type lights, Anern provides tailored solutions for any geographic location.

By combining the professional installation steps outlined above with the premium hardware provided by Anern, you can ensure a lighting system that is reliable, durable, and sustainable.

Installing a solar street light is a straightforward process when approached with the right tools and a clear plan. From the initial foundation work to the final hoisting of the pole, following these steps ensures safety and performance. By investing in quality equipment from Anern and adhering to these industry-standard installation practices, you contribute to a brighter, greener future for your community.
