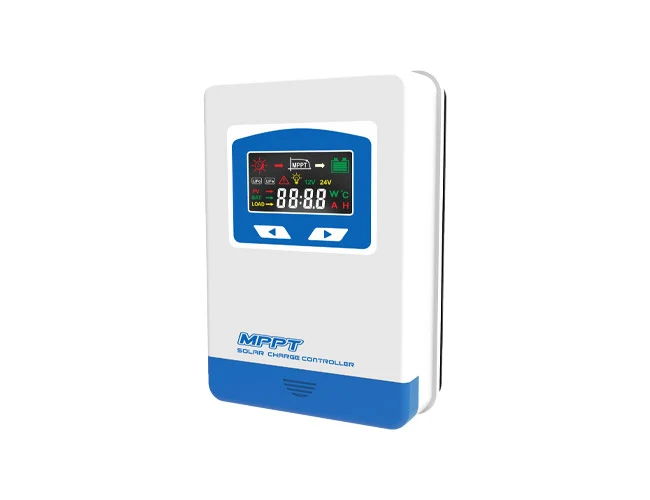

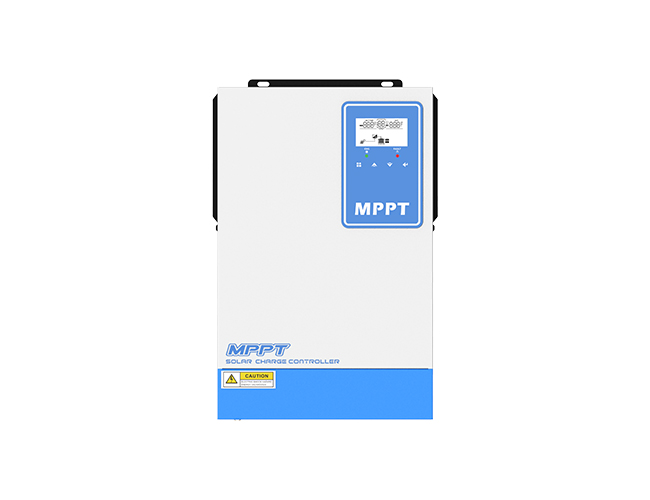

MPPT Solar Charge Controller

MPPT solar controller refers to the solar controller with Maximum Power Point Tracking function. MPJ and MPK2 solar charge controller is MPPT photovoltaic battery charge controller with our own technology.  The MPPT solar controller can detect the power generation voltage of the solar panel in real time, and track the highest voltage and current value (VI), so that the solar system can charge the battery with the maximum power output.

The MPPT tracking efficiency is 99%, and the power generation efficiency of the entire system can reach 97%.  Compared with the PWM controller, the MPPT can improve the control accuracy and the output power of the solar panel can be increased by 5%-30%.

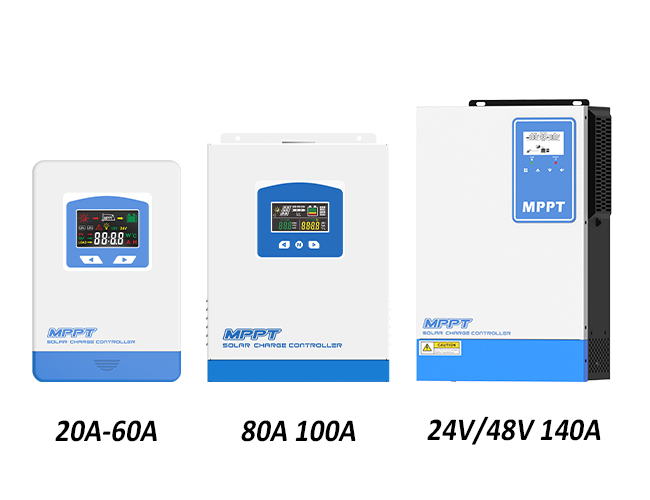

MPPT Solar Charge Controller

10A/20A/30A/40A/60A/80A/100A

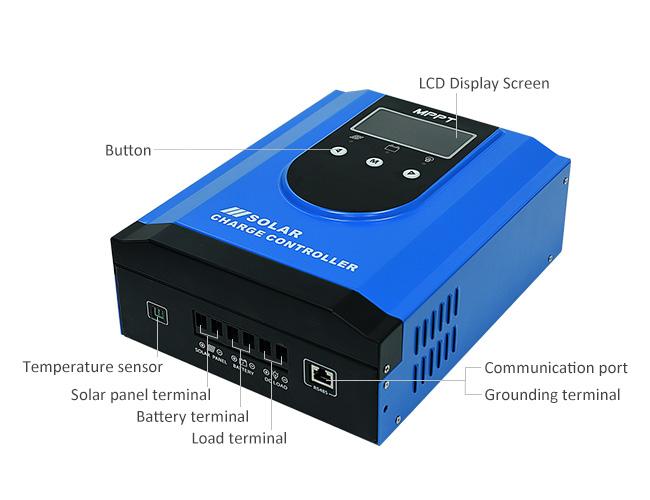

Feature of MPPT Solar Charge Controller

  • Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%;

  • 12/24/48V automatic voltage identification;

  • 150V wide PV array maximum power point operating voltage range;

  • Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 battery types are available;

  • Color LCD is designed to dynamically display the operation data and working status of equipment;

  • Built-in or external bluetooth monitoring system;

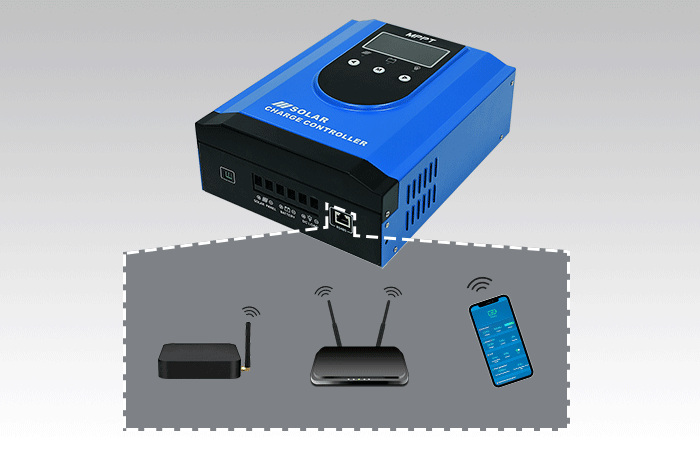

COMMUNICATIONS

Built-in or external bluetooth monitoring system.




Compatible with

a variety of cell types

the user's custom option

Supported battery types: Seal, GEL, Flooded, LifePO4 and

Li(NiCoMn)O2 battery types are available.

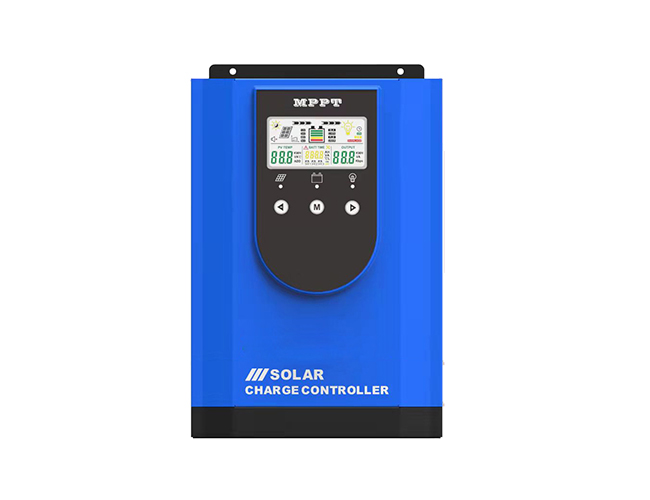

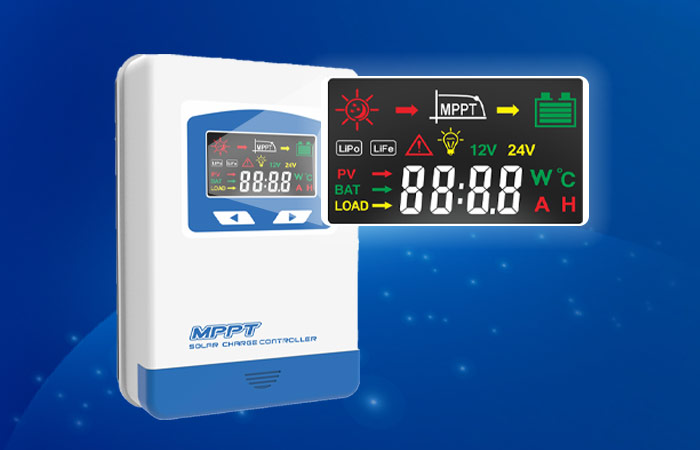

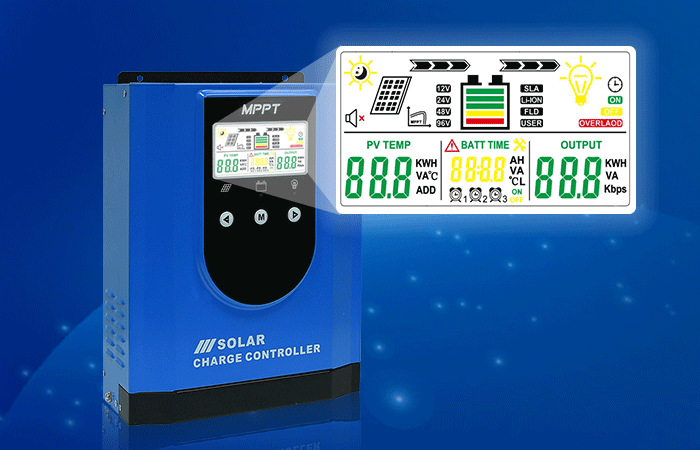

Color LCD

Color LCD is designed to dynamically display

the operation data and working status of equipment.



Specification of MPPT Solar Charge Controller

Item No.

DC Voltage(Auto)

Maximum
Charge Current

PV Maximum Input Voltage

Carton Dimension

G.W

Remark

AN-MPJ2024-10A

12/24V

10A

100V

510*415*315mm

18.5kg

LCD display/ USB output/Support charging lithium battery/Plastic Cover

AN-MPJ2024-20A

12/24V

20A

100V

510*415*315mm

18.5kg

AN-MPJ4024-30A

12/24V

30A

100V

485*440*400mm

22kg

AN-MPJ4024-40A

12/24V

40A

100V

485*440*400mm

22kg

AN-MPJ6024-50A

12/24V

50A

100V

465*385*310mm

16.7kg

AN-MPJ6024-60A

12/24V

60A

100V

465*385*310mm

16.7kg

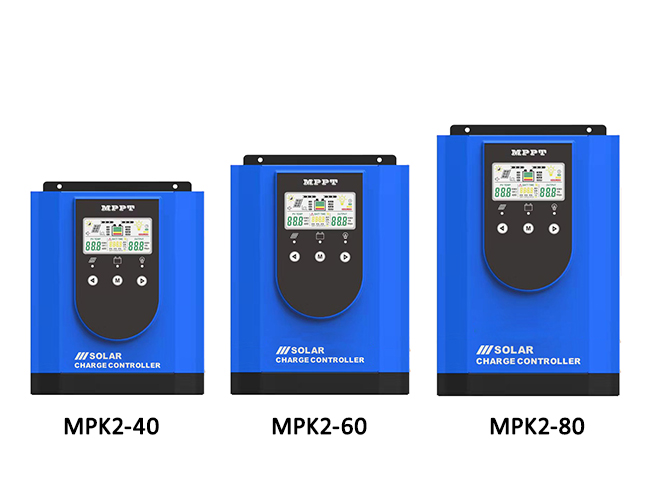

AN-MPK2-4048-30A

12/24/48V

30A

150V

585*475*300mm

22kg

LCD color screen display/RJ45 PORT/RS485 communicate/Aluminum Cover

AN-MPK2-4048-40A

12/24/48V

40A

150V

585*475*300mm

22kg

AN-MPK2-6048-50A

12/24/48V

50A

150V

585*475*300mm

17.8kg

AN-MPK2-6048-60A

12/24/48V

60A

150V

585*475*300mm

17.8kg

AN-MPK2-8048-80A

12/24/48V

80A

150V

565*435*375mm

21.5kg

AN-MPK2-8048-100A

12/24/48V

100A

150V

565*435*375mm

21.5kg
