Good roadway lighting depends not only on light output, but also on where each pole is placed. The same solar road lights can produce very different results when arranged on one side, staggered across both sides, paired opposite each other, or installed in a central median.
Layout design asks a spatial question: where should the poles stand so their light distributions overlap without creating bright zones or dark gaps? In a solar road lighting system, pole position also affects foundations, panel exposure, maintenance access and shading risk.

Roadway lighting works through overlapping photometric distributions rather than isolated pools of light beneath each pole.
Road width: Wider carriageways may need light from both sides or a median.
Luminaire optics: Distribution controls how far light reaches forward and sideways.
Pole offset: Distance from the road edge changes where the useful beam lands.
Traffic geometry: One-way, two-way and divided roads create different needs.
Site constraints: Trees, signs and utilities can force poles away from ideal positions.
These variables explain why pole location must be designed together with the luminaire optics rather than decided only from equal distances on a road plan.
A single-side layout places all poles along one road edge. It is often practical on narrower roads where the selected luminaire can reach the opposite side with acceptable uniformity.
Its advantage is simplicity. Foundations and maintenance remain on one side, and solar panels may be easier to keep away from shading if that roadside is more open.
The limitation appears as road width increases. The far side can become darker than the pole side even when average illuminance looks acceptable. Single-side roadway lighting should therefore be chosen from road width and photometric performance, not installation convenience alone.
A staggered layout alternates poles from one side to the other, with each luminaire offset from the luminaire opposite it.
This can improve cross-road balance when a road is too wide for effective single-side lighting but does not need paired poles at every position. Successive luminaires contribute light from different sides.
For solar road lights, staggered placement can also distribute foundations more evenly. However, spacing must be defined clearly: 30 m between successive luminaires along the road is not the same as 30 m between poles on each side.
That distinction becomes important when calculating the final number of poles and comparing different roadway lighting layouts.

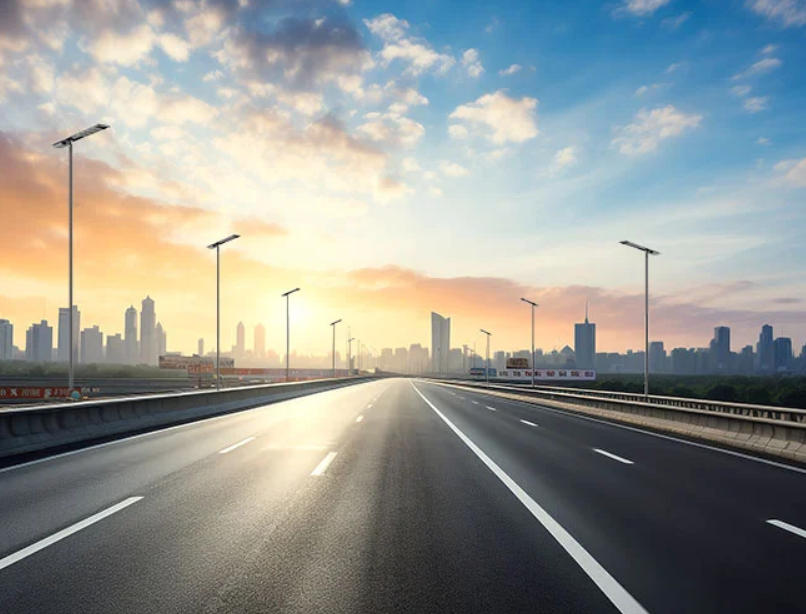

Opposite lighting places poles on both sides at matching or nearly matching positions. It is useful where wider carriageways or higher lighting requirements make balanced cross-road coverage desirable.
| Layout | Pole Position | Main Strength | Main Limitation |
|---|---|---|---|
| Single-side | One edge | Simple for narrow roads | Can lose far-side uniformity |
| Staggered | Alternating sides | Balanced coverage | Spacing must be defined clearly |
| Opposite | Paired both sides | Strong symmetry | More poles and foundations |
| Median | Center divider | Useful for divided roads | Needs suitable median geometry |
Opposite roadway lighting can create strong symmetry because both sides illuminate the same road section. The trade-off is higher pole and foundation quantity.
It is therefore more suitable when the required cross-road coverage justifies the additional infrastructure rather than simply because the road is classified as “large.”
Divided roads introduce another option: placing poles in the central median.
A median layout can position the light source closer to the center of the road profile and may allow one pole structure to serve one or both carriageways. It can also reduce equipment along outer road edges.
However, central lighting is not automatically best for every divided highway. Median width, barriers, maintenance access and outer-lane coverage must still be checked.
If the optic cannot reach the outer edges effectively, a central pole may simply move the uniformity problem instead of solving it.
Median roadway lighting should therefore be evaluated as part of the complete carriageway geometry rather than treated as a default layout for every divided road.
Real roads rarely follow one perfect repeating layout.
Curves: Pole positions may need to follow the changing road alignment.
Intersections: Wider conflict areas can require additional or relocated luminaires.
Crosswalks: Pedestrian visibility may require targeted positioning.
Turning lanes and merges: Added pavement width changes the lighting geometry.
Obstacles: Trees, drainage or utilities may force a pole to move and require rechecking.
This is where roadway lighting becomes more than placing equally spaced dots on a plan.
Anern currently provides IES photometric files and DIALux simulation support for road and highway projects. These resources allow project teams to evaluate pole arrangements and lighting performance before installation rather than relying only on a standard repeating layout.
For irregular road sections, this type of photometric verification is particularly valuable because changing one pole location can also change the overlap with neighboring luminaires.
Effective roadway lighting comes from positioning poles so their light distributions work together.
Single-side layouts can suit narrower roads, staggered arrangements can balance wider carriageways, opposite layouts provide stronger symmetry, and median lighting can serve divided roads when geometry supports it. Curves, intersections and crosswalks then require local adjustments.
For a solar road lighting system, the best layout is not necessarily the most regular one. It is the arrangement that achieves useful illumination and uniformity with a practical number of poles.
Single-side, staggered, opposite-side and median arrangements are the most common.
It can work when single-side coverage is insufficient but paired opposite poles are not required at every position.
It can improve cross-road balance, but the correct choice depends on road width, optics and lighting requirements.
Pole positions should respond to junction geometry and visibility needs rather than simply continuing regular spacing.
Not always. Median lighting is one option; opposite or other layouts may also work depending on road geometry and photometric design.
