Solar street lights use solar energy as the energy source. Capable of realizing conversion from photovoltaic to electricity through solar panels, the solar powered lights produced by Anern Industry Group Limited use their batteries to store electricity during the daytime, and power the light through the controller at night to achieve the required functional lighting.
As a mature China LED solar light manufacturer, Anern is a comprehensive enterprise with 15 years of experience in R&D, production, and sales of different types China solar lights. Anern owns dozens of product-related patents, and our different types of solar street lights are sold to more than 100 countries around the world, participating in the completion of thousands of government solar lighting projects.

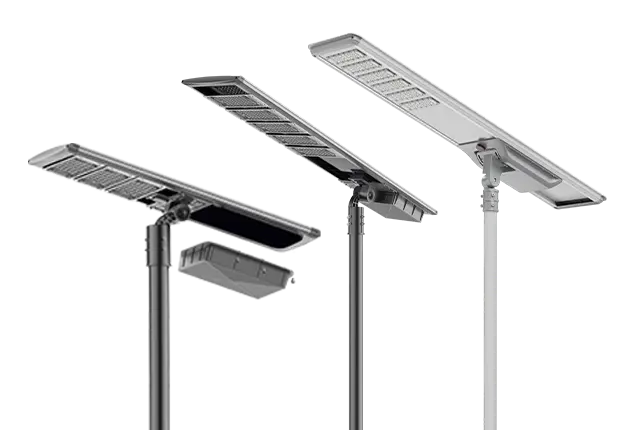

Anern can offer you high-quality solar street lighting systems and the best solar street lights at good prices. Supply solar street lights with security cameras and motion sensors. Supply 40W 60W 80W 100W 120W 150W 200W all in one solar street lights and all in two solar street lights to meet your high requirements for business and projects. Feel free to contact us now!
Solar lighting uses solar panels to absorb solar radiation during the daytime and converts it to electrical energy. It is stored in the battery bank through a charge and discharge controller. At night, when the daylight gradually decreases to about 10lux and the solar panel open circuit voltage is about 4.5V, the controller shall detect this voltage value and then direct the battery to discharge and power the LED light source to realize functional lighting.
There are two main types of batteries for solar-powered lights, lead-acid batteries, and lithium batteries.
The advantages of lead-acid batteries are that they have been used in solar lighting for the longest time, and are more stable and cost-effective. The disadvantage is that the lead-acid battery is large in size and can generate serious environmental pollution during production, and its price fluctuation is big due to the effect of the lead cost.
The advantage of lithium batteries is that under the same capacity, their volume and weight are smaller than lead-acid batteries, the energy density is bigger, and its use is more flexible. The disadvantage is that its price is higher compared with a lead-acid battery. However, with the technical development and increasing high acceptance in the market, the lithium battery cost has gradually decreased and becomes the main battery type used in solar lighting.
Solar PV modules, also called solar panels, are the core part of the solar photovoltaic power generation system and the most valuable part of the solar energy system. Its function is to convert the sunshine radiation to electric energy and send to batteries for storage. It can also energize the loads directly.
The controller mainly plays the role of charge/discharge control and management in the solar lighting system. During the daytime, the solar panel generates electricity and charge to the battery through the controller. At night, the battery of the solar lights is discharged through the controller to supply power to the light source for lighting. When the rainy days are too long, if the battery voltage drops below the controller preset battery lack-of-power voltage, the controller shall cut off the battery power supply. In addition, the controller has an intelligent power mode which can adjust the light source brightness based on battery surplus capacity for energy-saving purposes and can extend lighting time to the maximum in continuous rainy/cloudy conditions.

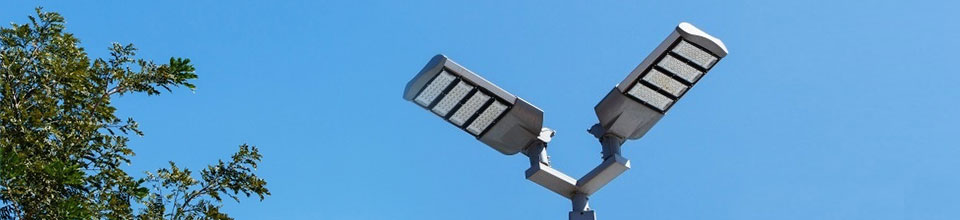

LED is the newest generation of light sources. Currently, different types of led lights are widely applied in both outdoor lightings such as street lights, floodlights, garden lights, and also indoor lighting such as bulbs, tubes, ceiling lights, etc.
More than 13 years of practical experience in solar light street lights.
Participated in large-scale solar lighting projects in more than 90 countries.
As a mature solar street light company, Anern has 20 product-related patents.
A complete product line from traditional split solar street lights to smart all-in-one solar street lights.
Have a professional pre-sales and after-sales team.
Provide scientific solar lighting solutions.
Using solar power, the street solar led lights can reach the same illuminance flux of 250W as the high-pressure sodium lamp, which greatly reduces the power consumption; while using high-pressure sodium lamps or mercury lamps, the power of the traditional street lights cannot be lower than 250W.
The electricity cost of using a 57W solar light street light in one year is only 20% of the electricity cost of using a 250W ordinary high-pressure sodium lamp in a year, which greatly saves electricity costs and is an ideal energy-saving product.
Compared with ordinary street lights, the LED street lights produce lower temperatures during use, and continuous use will not produce high temperatures.
The current high-pressure sodium lamps and mercury lamps on the market use high-voltage point poles to excite X-ray illumination, which contains harmful metals such as mercury, and harmful rays; compared with solar street lamps, street solar led lights are safe and low-voltage. They can greatly reduce the potential safety hazards during installation and use.
Ordinary street lamps contain harmful metals, and the spectrum contains harmful rays. In contrast, the solar street lamp LED street lamp has a pure spectrum, no infrared and ultraviolet rays, no radiation, no light pollution, and no harmful metals, and the waste can be recycled. It is a typical green lighting product.
The average service life of ordinary street lights is 12,000 hours. Replacing street lights is not only costly but also affects traffic. Construction in tunnels and other places is especially inconvenient; the average life of solar light street lights is more than 50,000 hours.
1. Confirm the installation position of the solar LED streetlight: According to the construction drawings and the geological situation of the survey site, in the place where there is no shading on the top of the streetlamp, determine the installation position of the pole with a spacing of 20-60 meters as the reference value; otherwise, the pole installation position should be adjusted appropriately.
2. Dig the pole foundation pit: At the determined pole installation position, excavate the pole foundation pit according to the height and width of the ground cage, and the foundation pit should be slightly wider than the width of the ground cage. If the surface soil is soft, the depth of the excavation should be deepened, and other facilities (such as cables, pipes, etc.) at the excavation location should be confirmed and protected.
3. Pour the foundation anchor bolts cage of the pole: In the excavated foundation pit, place the foundation anchor bolts cage in the pit and keep the screw of the cage exposed to the ground level. Then use concrete to cast and fix the embedded parts. During the pouring process, stir and be evenly balanced to ensure the compactness and firmness of the entire embedded part.
1. Thread the cable of the Anern solar street light through the center hole of the support arm, pass it out from the top of the pole, and then fix the solar LED streetlight on the pole support arm with screws.
2. Fix the solar panel on the bracket with screws. After adjusting the light angle, fix the bracket on the top of the pole with screws.
3. Connect the wires of the solar light street light with the solar panels, pay attention to correct polarity during the wiring.
1. Clean up the residue on the foundation
2. Erect the pole, and fix the baseplate on the four anchor bolts incorrect position. If the condition allows, it is recommended to use a crane. Tighten the screws of the anchor bolts and make sure the pole of the street solar led lights is fixed with the anchor bolts firmly.
Solar LED street lights are a solar solution that replaces traditional street lights by combining solar energy and LED light sources. Solar panel street lights can not only meet the basic functions of lighting, but they can also provide brightness that can reach 2-3 times the brightness of the traditional ones.
Moreover, the power consumption of solar-powered street lights is much lower than traditional types. In terms of service life. theoretically, solar street lights' lifespan is 1-2 times of traditional street lights. So solar street lights have become the priority choice for road lighting construction in the world.
Anern solar-powered light has engineering quality. We promise that the raw materials we used do not contain any defective or second-hand product.
When solar-powered lights failure occurs, please check the following places:
Please check whether the solar panel wire is connected to the lamp cap wire and tighten it.
When connected to the solar panel line, the battery indicator (red light) of the controller will always be on, if not on, the battery may be out of power. Place the lamp cap and the solar panel in the sun at the same time and then observe the state of the controller indicator, to see whether the red light is always on and the blue light flashes slowly; If the indicator lights are not on, please consult the engineer of Anern for further guidance.
Regularly check the remote. Press the remote control to see is there any flashing at the controller. If there appears no flashing, adjust the remote distance and then press the remote again to send the signal. If this does not work, the remote of the solar-powered lights may be broken or you need to charge the remote.
Collector, arterial, and highway lighting
Parking lots: illumination in both open and covered parking lots
Emergency phones and lights are located along the paths/trails. Lighting for tennis courts and running tracks
Lighting along the perimeter of the barrier
Portable Power and lighting for emergencies
Backup for Brown Out/Black Out Lighting
SCADA and water treatment are examples of remote activities.
Construction sites and high-risk or dark locations require security lighting and surveillance cameras.
DOT Bridges with obsolete or damaged electrical wiring
Hazard warning lights are installed at stop signs, crosswalks, and on met-towers.
Rest spots and restrooms in remote areas
Government and military applications, both permanent and temporary
First of all, the lighting range of the solar-powered street lights is not fixed and will be affected by the height of the solar street lamp, the power of the lamp head, and other factors. Generally speaking, the illumination range of a 6 meter China solar light is about 20 square meters. The installation distance between two solar-powered lights is best controlled in about ten meters so that the installation of solar street lamps is the best.
Generally, the batteries of the bulk solar lights will work for about 3-4 years and the solar lights themselves can last for about 10 years or more.
To make the solar lights shine brighter, you need to make sure the solar panel is adjusted to the right angle so as to receive the solar power as much as possible. Moreover, it is also very important to clean the solar panel on the regular basis.
By turning off the solar lights, you can give the battery a chance of getting a full charge over several days of sunlight. It is up to you to decide whether you would love to turn the solar lights off or not.
Solar-powered lights can also be charged when there is no sun, but the amount of charging will vary according to the degree of overcast and rainy days. The bulk solar lights at Anern are all equipped with battery charging and discharging devices, usually, when the sun is full, they will charge themselves. And these solar lights will rely on battery power to maintain the power supply of street lamps on rainy days. On cloudy days when the sun's light is weak, the charging capacity of solar light is relatively weak.
Outdoor solar lamps normally require rechargeable batteries because the solar panels of this type of solar light will convert sunlight into electricity, so as to further charge the batteries which will then power the lamps.
First check whether the controller of the solar-powered lights is broken. If the controller is broken, then you should conduct a timely repair towards the light controller. Then you should observe the recent weather conditions. The normal charging of a solar-powered light should last for about 5-7 hours per day, so if the charging is only up to 2-3 hours such a situation is normal. Finally, you can check whether the battery inside the solar light is broken.
The design of Anern solar street light is completely in accordance with international road lighting standards. It can completely replace the traditional street light and has no wiring required, maintenance-free, long service life.
As a professional solar light supplier, Anern has a different type of solar street light to meet international standards of highway road, or rural road, always has one option for you.
Solar panel used imported high-efficiency Monocrystalline, the battery is new LifePo4 lithium battery.
The differences of Anern solar street lights are mainly in housing, solar panel, battery, and some special function.
Anern solar LED streetlight can be lighting for more than 12 hours per day, and have a backup of at least 5 rainy days.
