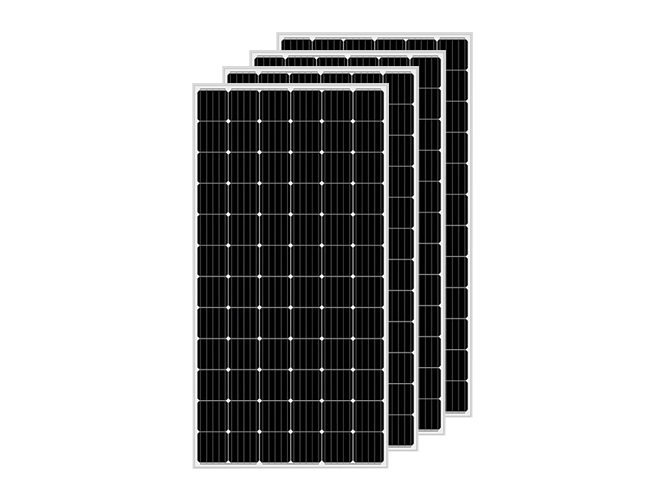

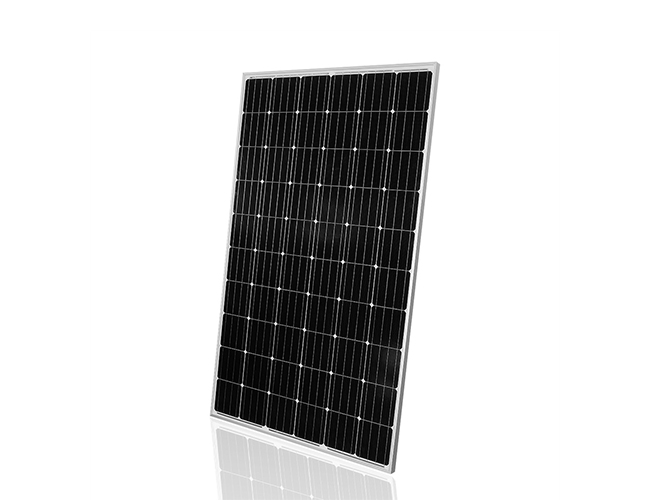

60W-550W Half Cut Cell Monocrystalline PERC Solar Panel

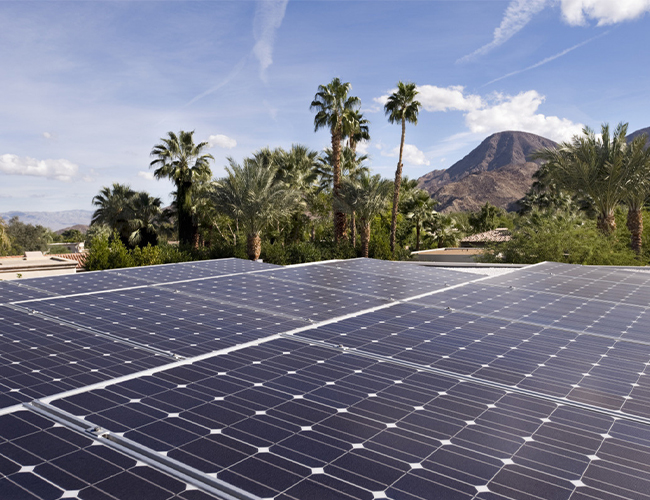

The photoelectric conversion efficiency of half-cut cell monocrystalline silicon perc solar panels is about 19%, and the highest is 21%. This is the highest photoelectric conversion efficiency of all types of solar panels. 60W 100W 150W 200W 250W 300W 350W 400W 460W 550W monocrystalline perc half-cut solar modules are designed for commercial and solar farm grid-tied applications.

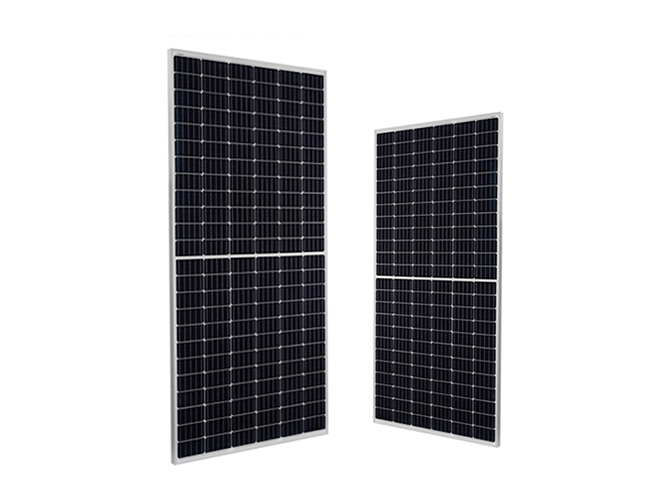

The Details of 9BB Half Cell Mono Solar Panel

Mono Silicon Solar Panels

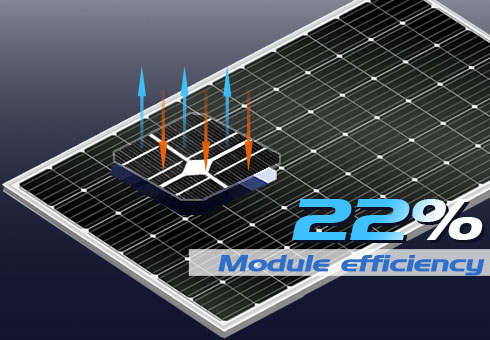

High Efficiency PV cell and highest conversion efficiency up to 22%. Potential induced degradation(PID)resistant.

Small Monocrystalline Solar Panels

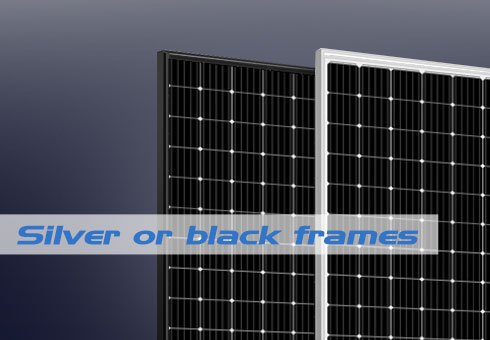

Silver or black frames are optional. Serrated-clip design tensile strength, boost bearing capability and prolong service life.

Best Monocrystalline Solar Panels

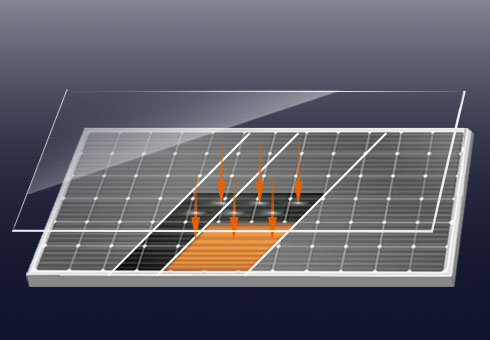

Adopt high transparent self-cleaning anti-reflective glass to increase the absorption of light, effectively reduce the power loss caused by dust.

Monocrystalline Silicon Solar Panels

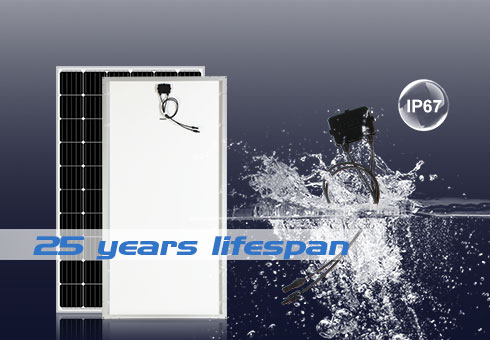

Adopting quality diode ensures module running safety, excellent heat dissipation performance and the protection grade reaches IP67.

The Specification Of Mono Half Cell Solar Panel

Item No.PM(w)Maximum Power VoltageMaximum Power CurrentOpen Circuit  VoltageShort Circuit CurrentModule Size
ANM-60W60W18V2.78A21.5V3A430*760*25mm
ANM-100W100W18V5.56A20.5V6.25A1000*580*30mm
ANM-160W160W18.4V8.7A21.9V9.31A1040*760*30mm
ANM-200W200W22.5V8.89A26.6V9.42A1470*760*30mm
ANM-250W250W36V6.94A43V7.35A1535*760*30mm
ANM-300W300W36V8.33A41.50V9.26A1906*760*30mm



Item No.PM(w)Maximum Power VoltageMaximum Power CurrentOpen Circuit  VoltageShort Circuit CurrentModule Size
ANM-G550W550W42.00V13.12A49.80V13.98A2278*1134*30/35mm
ANM-G460W460W35.07V13.12A41.55V14.05A1909*1134*30mm
ANM-G410W410W31.30V13.10A37.30V13.79A1722*1134*30mm
ANM-G400W
(Full Black)
400W31.00V12.91A37.00V13.60A1722*1134*30mm


The Strengths of Anern Mono Solar Panel

  • Half cut solar panels own high power output and highest conversion efficiency

  • Anti-reflective and anti-soiling surface reduces power loss from dirt and dust

  • Outstanding performance among mono perc half cut solar panels in low-light irradiance environments

  • Excellent mechanical load resistance: Certified to withstand high wind loads(2400Pa) and snow loads(5400Pa)

  • High salt and ammonia resistance among mono half cell solar panels certified by TÜV NORD

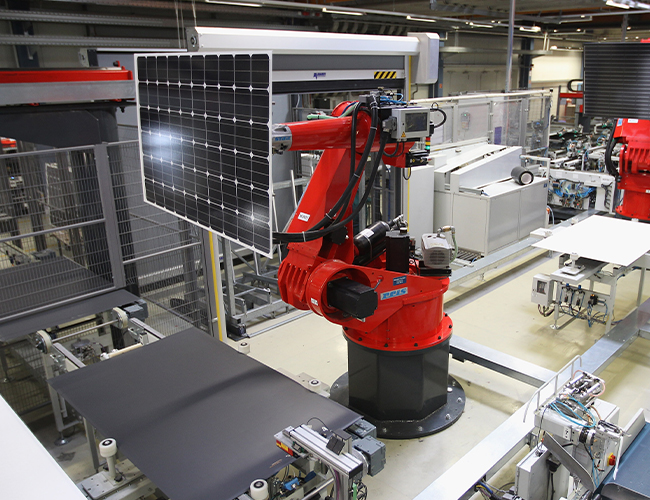

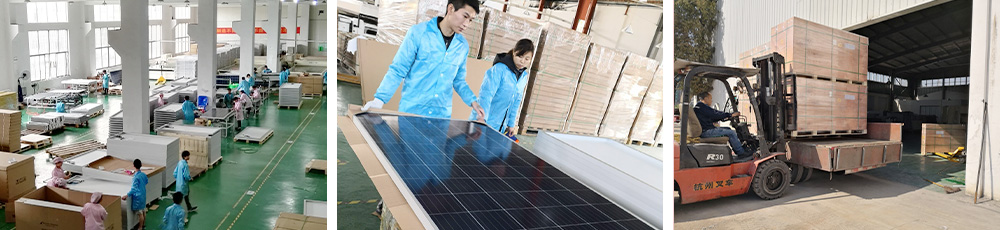

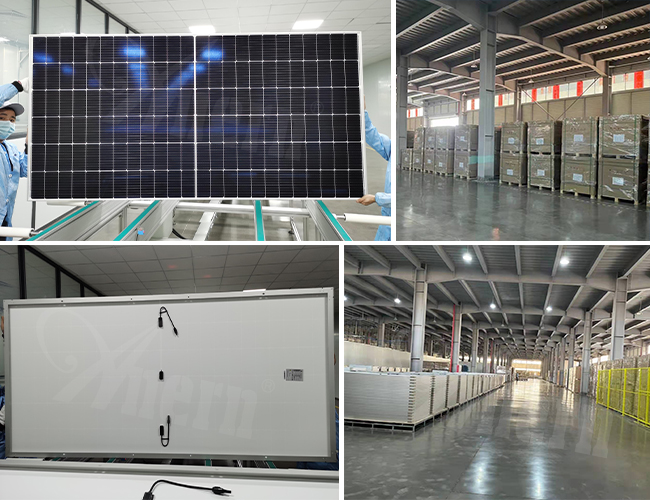

The Production Process of Monocrystalline solar panel

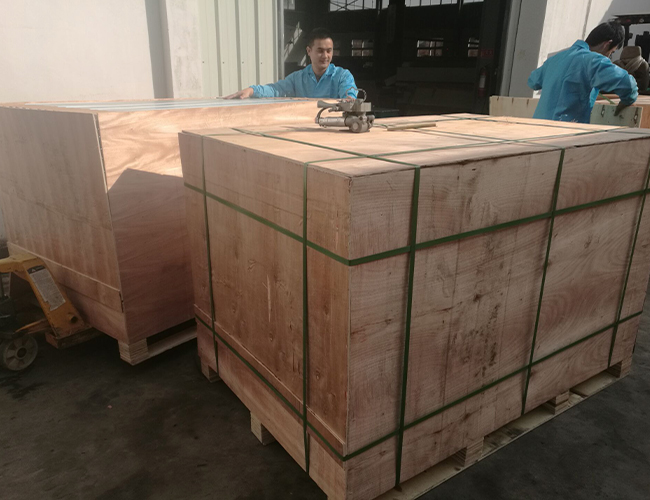

Annan's factory is strong technical force, advanced equipment, obvious price advantage,many buyers will choose us. Two cabinets of solar panels are undergoing final inspection, they are about to be shipped to Nigeria.
