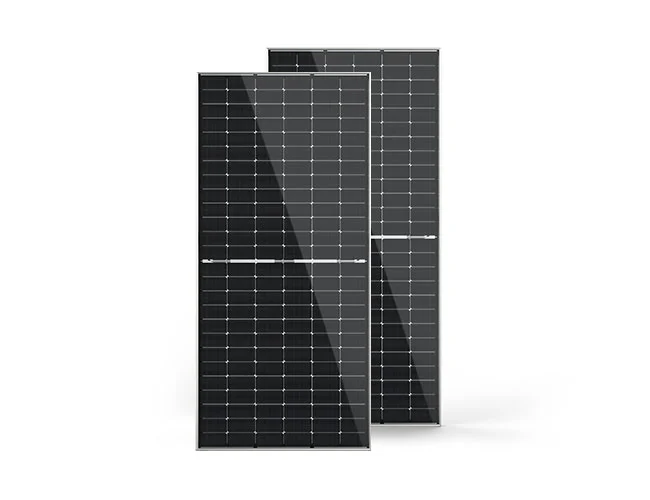

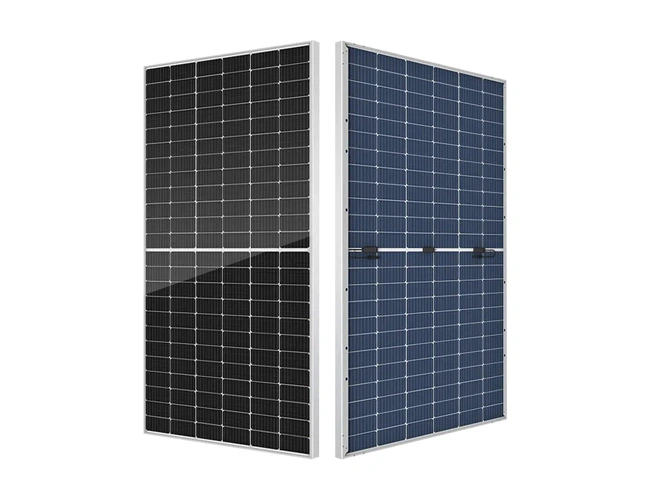

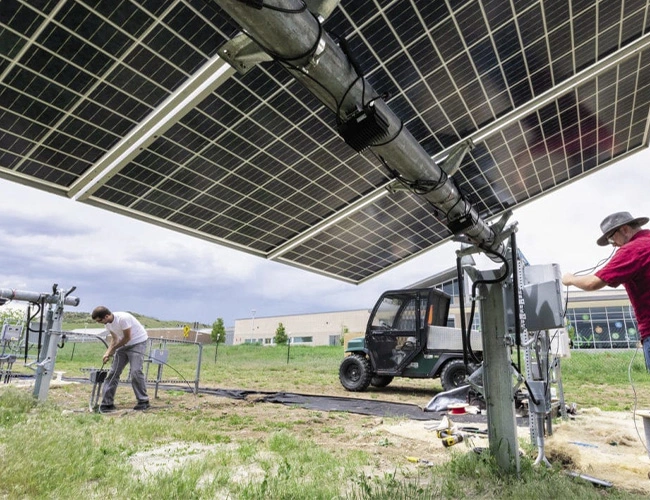

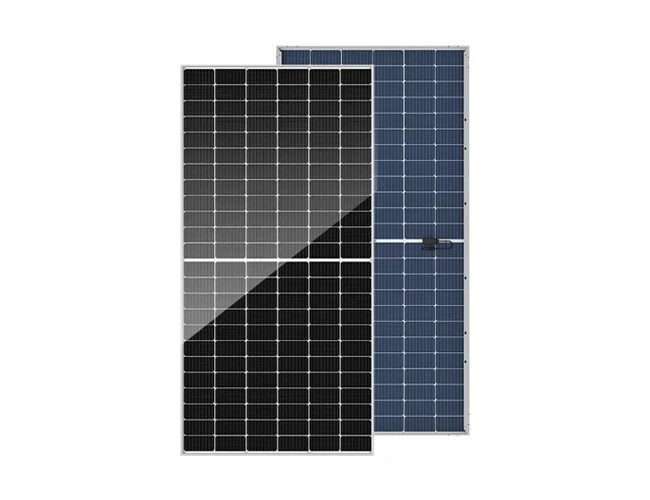

Bifacial solar panels, which are solar panels that capture sunlight on the front and back, can produce 11% to 23% more energy than single- or single-sided panels. Even more impressive, a system using bifacial panels paired with a solar tracker produced 27 percent more solar energy than a similarly sized system using conventional panels.

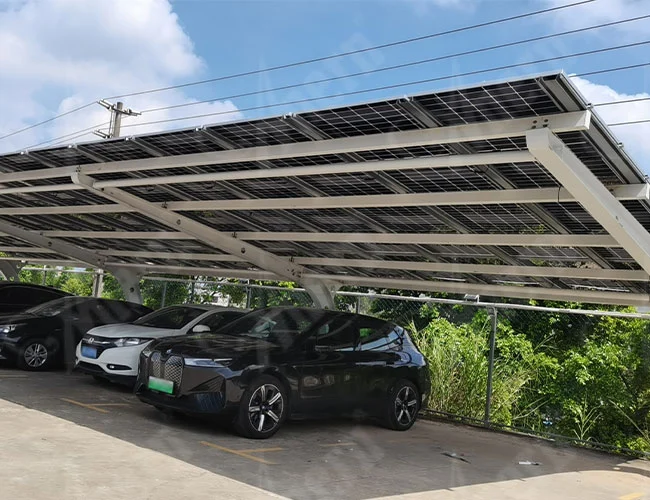

The ideal use case for the design of the bifacial solar panel mounting system is commercial and utility-scale solar installations, especially those utilizing solar trackers.

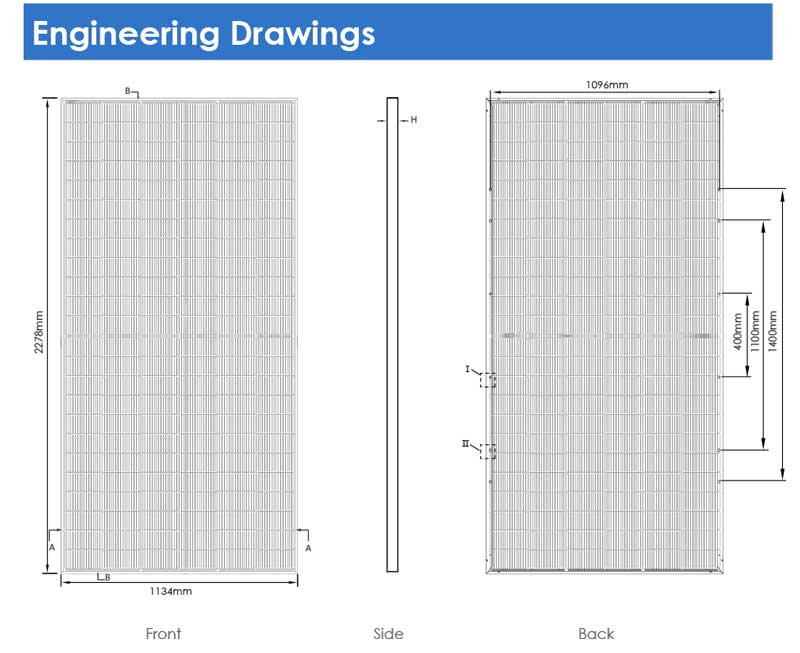

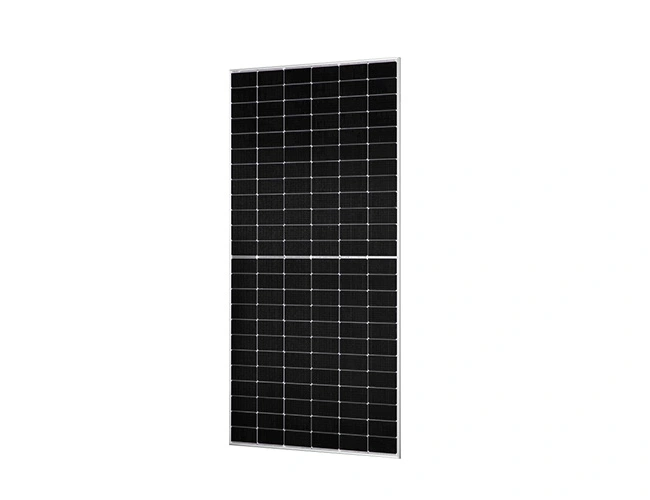

| Item No. | PM(w) | Maximum Power Voltage | Maximum Power Current | Open Circuit Voltage | Short Circuit Current | Module Size |
| ANM-ND580W | 580W | 42.59V | 13.62A | 51.47V | 14.37A | 2278*1134*30mm |
| ANM-ND430W | 430W | 31.88V | 13.49A | 38.49V | 14.23A | 1722*1134*30mm |
For the same module type, the bifaciality of the N-type module is increased by 10-15%compared with the P-type module.

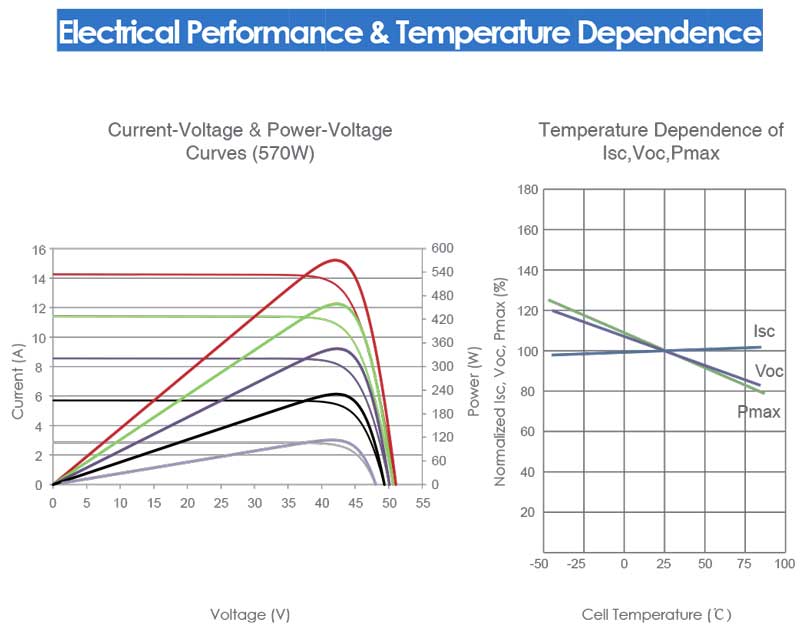

The temperature coefficient of the P-type module is-0.34%/°C
The temperature coefficient of the N-type module is optimized to-0.30%/°C
Power generation is particularly prominent in high-temperature environments

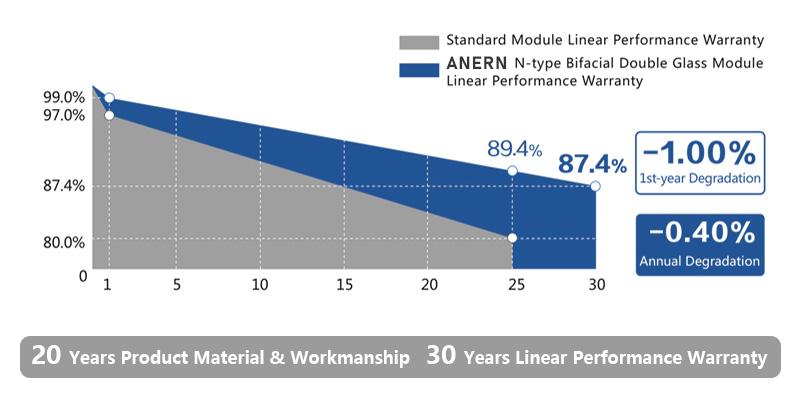

1st year<1%(P-type 2%)
30-year warranty for both monofacial and bifacial
power output (30 years for N-type bifacial and 25 years for P-type monofacial)
Output power is no less than 87.4% of the initial after 30years.
Save money - with manufacturer direct pricing
Save time - with experienced team to get project done
Lead the industry - with the most cutting-edge products
