On Grid and Off Grid Pure Sine Wave Hybrid Solar Inverter

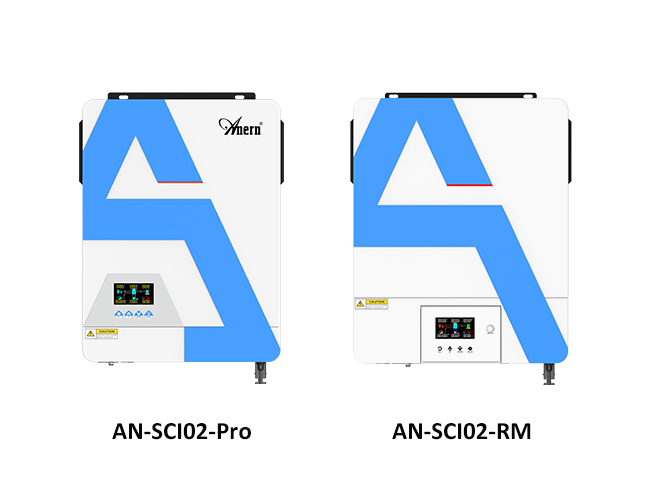

AN-SCI02 Pro and RM series hybrid solar inverter with rated power of 3.6KW, 4.2KW and 6.2KW are Anern latest updated and patent designed product in 2022. Combining functions of on grid and off grid, this series hybrid solar inverter can backup power for all kinds of appliances in home or small business, MPPT controller current up to 120A,and it also delivers a value added, easy to install system that provides efficient power globally for every need.


The Details of On Grid and Off Grid Pure Sine Wave Hybrid Solar Inverter

Both on-grid and off-grid available,Pure Sine Wave output, can be converted to a variety of different power load.

Both on-grid and off-grid available,Pure Sine Wave output, can be converted to a variety of different power load.

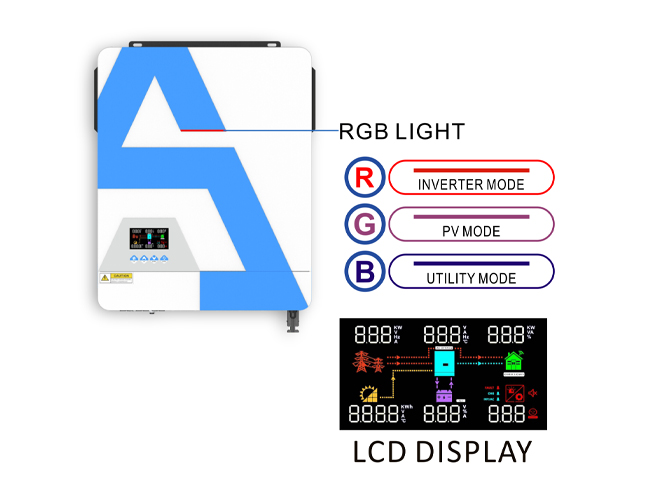

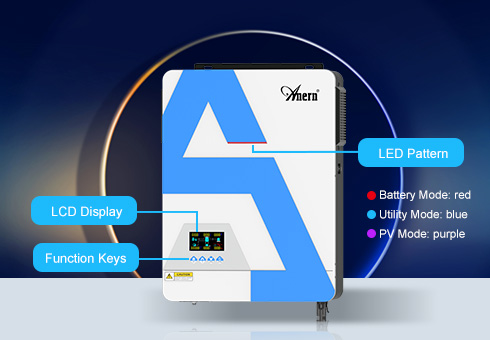

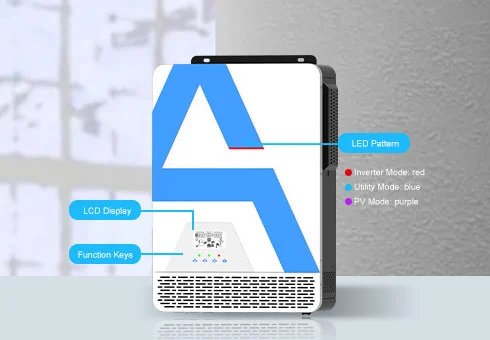

Convenient LCD operation, you can set up parameters through LCD panel easily to improve inverter performance.

Convenient LCD operation, you can set up parameters through LCD panel easily to improve inverter performance.

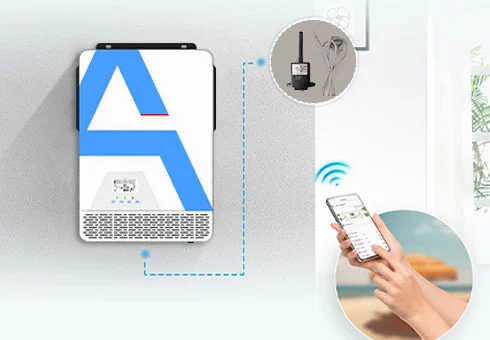

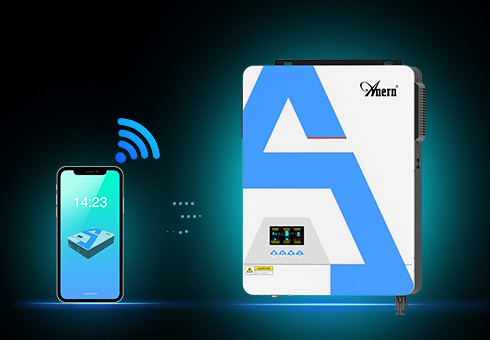

Optional WIFI monitoring function, you can check the running status of the hybrid inverter for solar system through APP at any time, and realize remote operation.

Optional WIFI monitoring function, you can check the running status of the hybrid inverter for solar system through APP at any time, and realize remote operation.

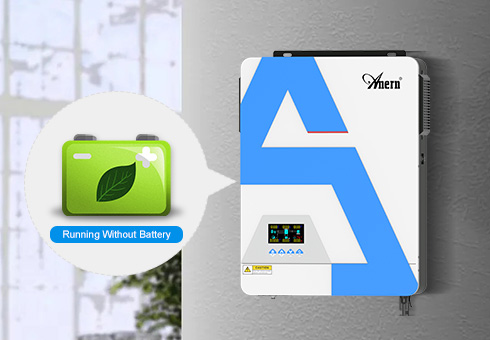

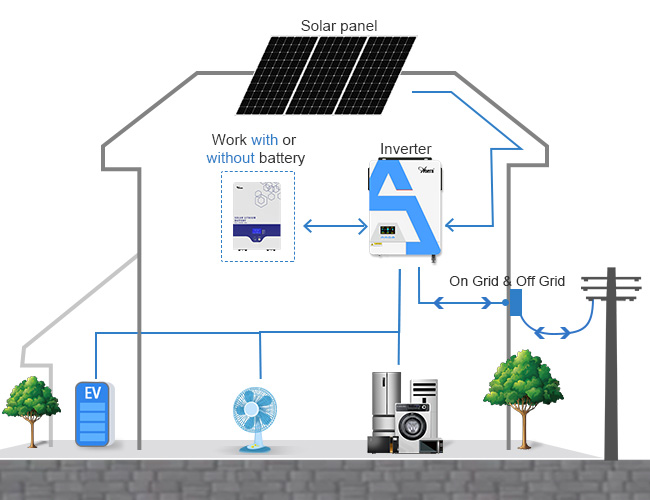

Start directly without battery, inverter running without batteries also can help to reduce cost in solar power system.

Start directly without battery, inverter running without batteries also can help to reduce cost in solar power system.


Key Features of  On Grid and Off Grid Pure Sine Wave Hybrid Solar Inverter

  • High efficiency pure sine wave inverter.

  • Working with or without battery.

  • MPPT based Solar Charge Controller 120 AMP.

  • Intelligent functionality enables utility and solar input prioritization.

  • Wide PV input range 90VDC-500VDC.

  • WIFI and GPRS are available for ios and Android (option).

  • One-click restoration to factory Settings.

  • Built-in Lithium battery automatic activation.



The Specification of On Grid and Off Grid Pure Sine Wave Hybrid Solar Inverter

Model

SCI02-Pro/RM-3600

SCI02-Pro/RM-4200

SCI02-Pro/RM-6200

RATED POWER

3600W

4200W

6200W

INPUT

Voltage

230 VAC

Selectable Voltage Range

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

8400VA

Efficiency (Peak) PV to INV.

97%

Efficiency (Peak) Battery to INV.

94%

Transfer Time

10 ms (For Personal Computers) ; 20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

24 VDC

24 VDC

48 VDC

Floating Charge Voltage

27 VDC

27 VDC

54 VDC

Overcharge Protection

33 VDC

33 VDC

63 VDC

SOLAR CHARGER

Maximum PV Array Power

6200 W

6200W

6500 W

MPPT Range @ Operating Voltage

90 ~ 450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum Charging Current

120A

140A

120A

Maximum Efficiency

98%

Grid-Tie Operation

Inverter Mode

3600W

4200W

6200W

Nominal Output Voltage

220/230/240VAC

Feed-in Grid Voltage Range

195-253VAC

Feed-in Grid Frequency Range

49-51±1Hz

Nominal Output Current

15.7A

18.2A

26.9A

Power Factor Range

>0.99

PHYSICAL

Dimension, D x W x H (mm)

100 x 300 x 444

Net Weight (kgs)

10

10.5

11

Communication interface

WIFI

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

0°C - 55°C

Storage Temperature

–15°C - 60°C
