Mobile Display Hybrid Solar Inverter

The mobile display solar inverter is designed by our company and is an improved product based on the original product. In addition to retaining all the original functions and parameters of the SCI02-PLUS series, the appearance of the series has been redesigned, and a unique removable display screen currently on the market has been added. This function allows you to disassemble the display on the inverter and equip it with extension cords of different lengths according to your needs, which can be installed anywhere in your home.

The Details of Mobile Display Hybrid Solar Inverter

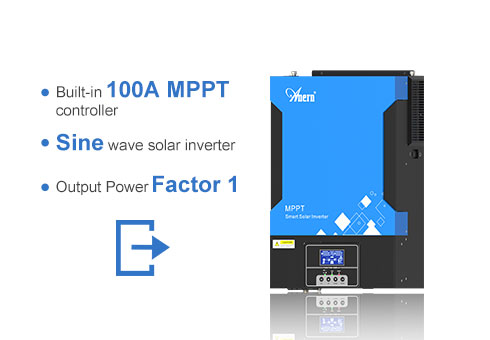

Built-in 100A MPPT controller, pure sine wave solar inverter, output power factor 1.

Built-in 100A MPPT controller, pure sine wave solar inverter, output power factor 1.

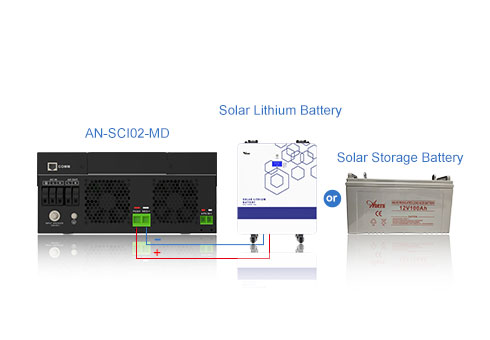

Both solar storage batteries and solar lithium batteries can be directly connected, and the battery balancing function can optimize battery performance and extend battery life.

Both solar storage batteries and solar lithium batteries can be directly connected, and the battery balancing function can optimize the battery performance and extend battery life of this hybrid inverter for solar system.

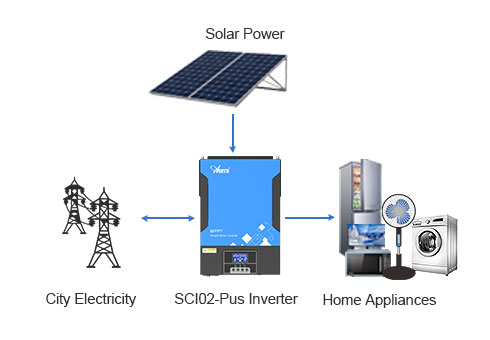

It can be used alone to supply the load with solar panels or city electricity, and it can be used normally without a battery.

It can be used alone to supply the load with solar panels or city electricity, and it can be used normally without a battery.

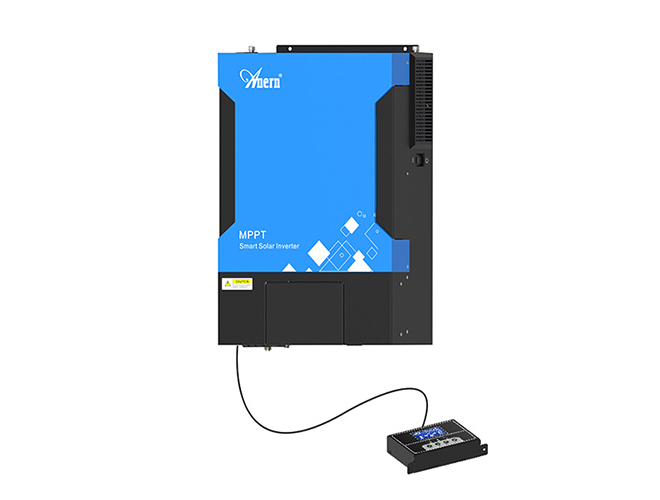

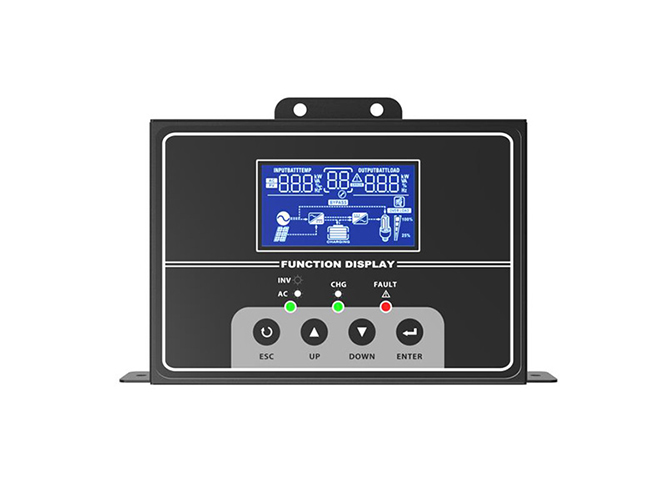

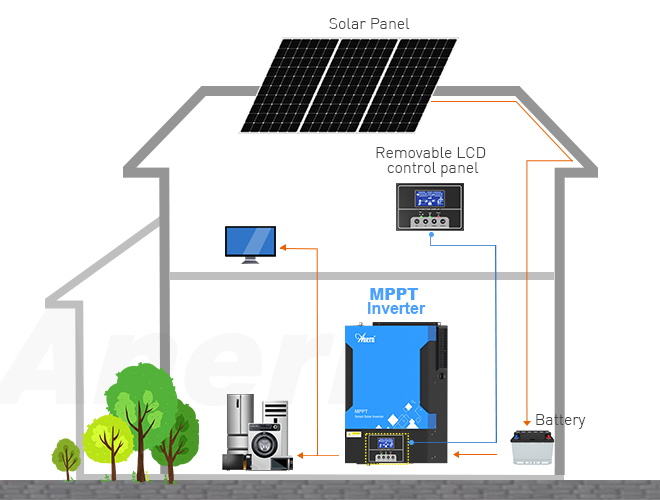

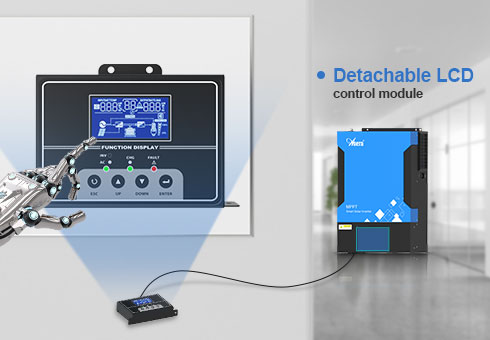

Detachable LCD control module, and can be converted to remote panel use, with extension cords of different lengths.

Detachable LCD control module, and can be converted to remote panel use, with extension cords of different lengths.

The Specification of Mobile Display Hybrid Solar Inverter

Model

SCI02-MD-3500

SCI02-MD-5500

RATED POWER

3500W

5500W

INPUT

Voltage

230 VAC

Selectable Voltage Range

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

7000VA

11000VA

Efficiency (Peak) PV to INV.

97%

Efficiency (Peak) Battery to INV.

94%

Transfer Time

10 ms (For Personal Computers) ; 20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

24 VDC

48 VDC

Floating Charge Voltage

27 VDC

54 VDC

Overcharge Protection

33 VDC

63 VDC

SOLAR CHARGER

Maximum PV Array Power

5000 W

6000 W

MPPT Range @ Operating Voltage

120 ~ 500 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum Charging Current

100A

Maximum Efficiency

98%
