Power Trio: Exploring the Components and Design of Three-Phase Solar Systems

Solar energy has emerged as a viable and sustainable alternative to traditional power sources. As more homeowners and businesses realize the potential benefits of harnessing solar power, the demand for efficient solar systems continues to grow. One such powerful system gaining popularity is the three phase solar system. It is the right choice whenever the point of common coupling is three-phase, when large rotating equipment must be supplied directly from solar, or when exporting significant power to the grid with tight power-quality limits. In this article, we will delve deep into the components and design of these innovative systems, revolutionizing the way we generate electricity.

Key Components of Three Phase Solar Systems

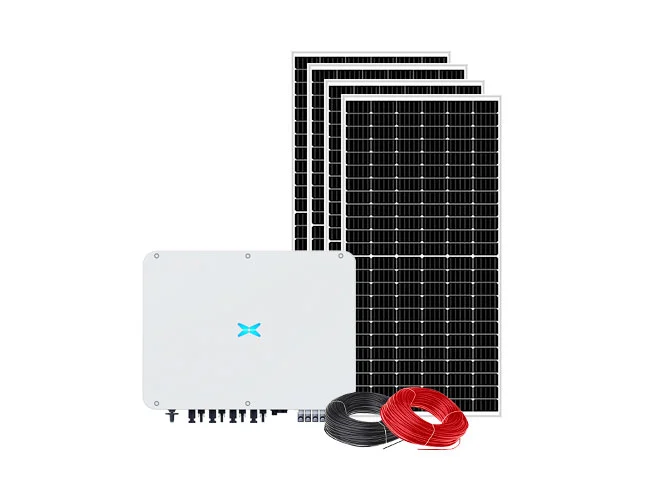

A three phase solar system comprises three separate alternating current (AC) outputs, allowing for efficient power distribution. It involves a combination of three inverters and a comprehensive monitoring system, designed to maximize the energy generation potential. These systems utilize solar panels to capture sunlight and convert it into direct current (DC) electricity. The inverters then convert this DC power into AC power, suitable for regular household and commercial use.

3 Phase Solar System Design

The design of a three phase solar power system is not only aesthetically appealing but also highly efficient. The panels are usually installed on rooftops or open spaces, allowing for optimal sunlight exposure throughout the day. With the inverters and monitoring system, the electricity generated can be monitored, controlled, and even fed back into the grid, ensuring a maximum return on investment. Due to their larger size and power output, three phase systems are ideal for commercial setups, industries, and large residential properties.

Common Pitfalls and how to Avoid Them

Designers sometimes undersize AC conductors leading to voltage rise and unwanted inverter derates on hot afternoons, or they mix array orientations on a single MPPT causing energy loss. Overly aggressive DC/AC ratios can yield attractive annual kWh but cause curtailment during key tariff hours. Skipping winter shading checks leads to seasonal surprises. Finally, neglecting phase-balance at the PCC can trip sensitive loads even though total kW appears adequate; always evaluate per-phase currents and voltages.

3 Phase Solar System Benefits

One of the major benefits of three phase solar systems is their ability to handle heavy loads. In a three phase system, power is evenly distributed across the three phases, offering a substantial increase in capacity compared to single-phase systems. This increased capacity makes 3 phase solar power system a practical choice for energy-intensive applications such as air conditioning, electric motors, and heating systems. Moreover, these systems are highly reliable, ensuring consistent power supply, even during peak electricity demands.

Storage-ready and Hybrid Architectures

Many commercial owners want both savings and resilience. Three phase hybrid systems can island a building or priority loads via an automatic transfer scheme and a grid-forming inverter/PCS. When islanded, the PCS sets voltage and frequency and the PV inverters follow it; when grid-connected, the EMS schedules charge/discharge for demand charge reduction and time-of-use arbitrage, while optionally enforcing export limits. Correct short-circuit ratio and inertia emulation settings are critical so that PV inverters remain stable under transient motor starts; this is a key advantage of three-phase systems with grid-forming capability.

Embracing the Future of Solar Power

As the world continues to transition towards clean energy sources, the future of solar power lies in the efficiency and scalability of three phase solar systems. Their ability to generate and distribute more power, along with the technological advancements, makes them a compelling choice for both residential and commercial applications. Furthermore, as the cost of solar power continues to decline, the return on investment for solar power system 3 phase becomes increasingly attractive.

In conclusion, three phase solar systems stand at the forefront of renewable energy technology. With their efficient design, robust components, and ability to handle heavy loads, these systems mark a significant stride towards sustainable power generation. Whether for residential or commercial purposes, embracing three phase solar systems offers a brighter future, harnessing the limitless power of the sun.
