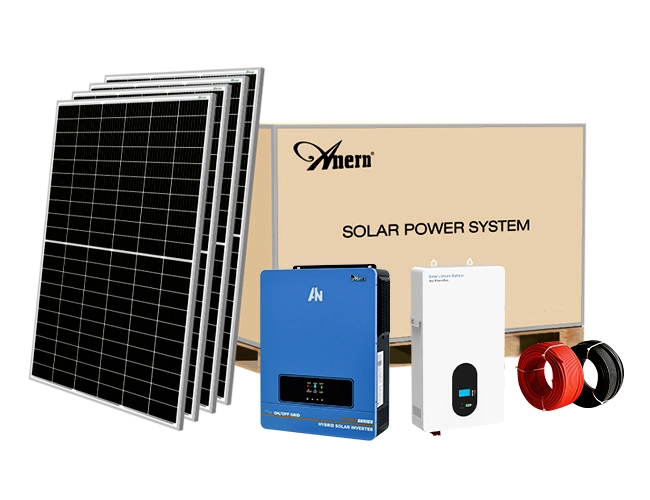

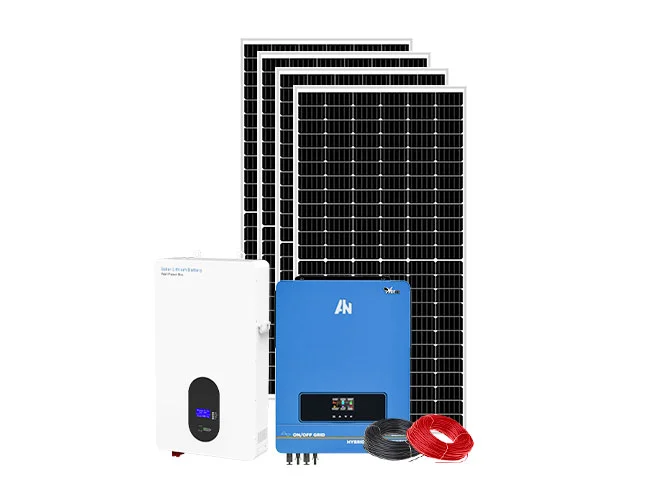

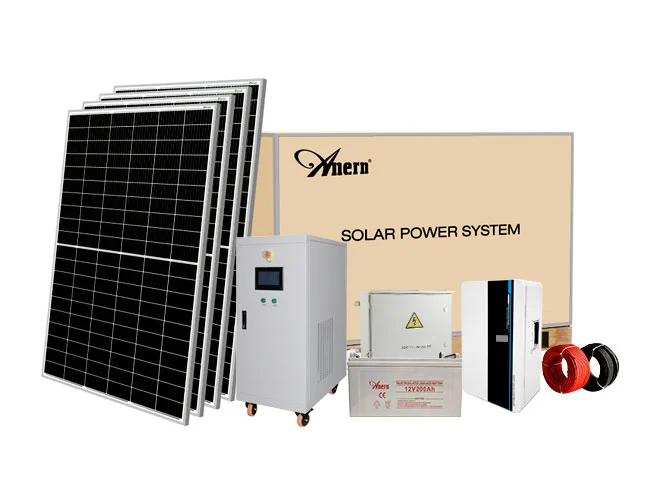

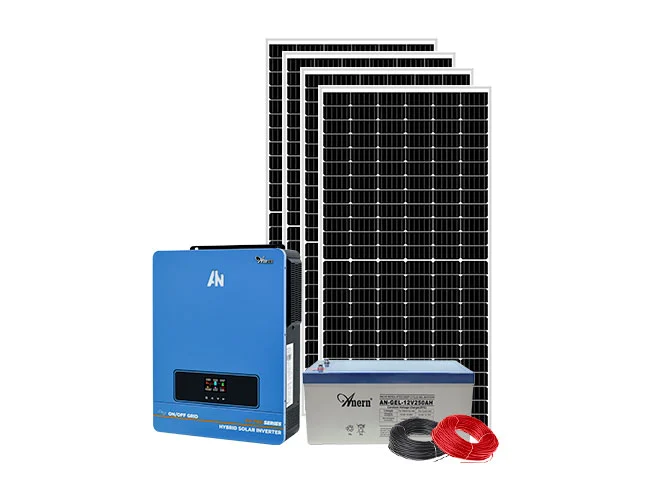

10KW-20KW Off Grid Solar Power Storage System

If your house has many high-power appliances (such as multiple air conditioners, water pumps, and large-capacity refrigerators), and the daily power consumption is large, then the 10KW 15KW 20KW off grid solar power systems are prepared for this.

This series of off grid solar solutions can carry up to 20KW of electrical appliances, and the maximum power generation is 70KWH per day. Using the newly developed MPPT controller, the conversion efficiency of 99% is almost no waste of electricity from the solar panels.

At the same time, this hybrid solar energy system has a WIFI monitoring function, which can monitor the power generation status of the solar panel system through the mobile app at any time.

The Details of 10KW-20KW Off Grid Solar Storage System

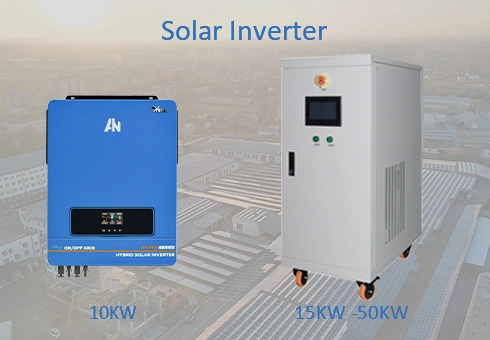

Rated DC96V/DC192V input, AC220V 1-phase output; Frequency: 50 Hz +/- 0.5%True sine-wave, off-grid type; LCD display of operating parameters; • Protections: Short circuit, overload, surge current, ov...

Rated DC96V/DC192V input, AC220V 1-phase output;

Frequency: 50 Hz +/- 0.5%

True sine-wave, off-grid type; LCD display of operating parameters;

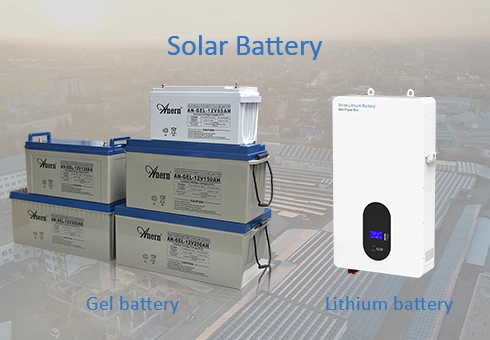

12V  200AH/250AH GEL valve-regulated lead-acid battery, fully sealed, deep cycle, free maintenance typeService Life: 5~6 years 48V/200AH Super Graphene LifePo4 lithium cellWall-mounted design, easy in...

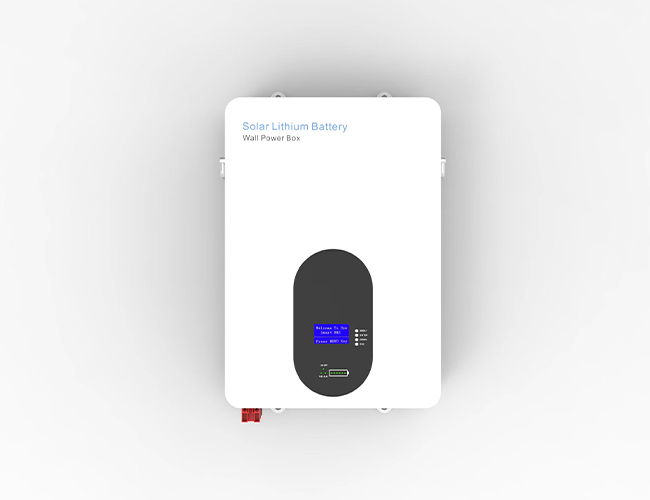

Lithium Battery: Wall-mounted design、Easy installation、Smart Elite BMS

Lead-acid Battery: Deep cycle、Free Maintenance、Fully sealed

PV Array Combiner, Solar Panel Rack, Cables- Wide range of DC input voltage- IP65 guard level, suitable for outdoor- Reliable thunderstorm & surge protection

PV Array Combiner, Solar Panel Rack, Cables

- Wide range of DC input voltage

- IP65 guard level, suitable for outdoor

- Reliable thunderstorm & surge protection


Type: Half-cell Monocrystalline PV ModuleMax Power: 450W/550W25 years power output guarantee

Type: Half-cell Monocrystalline PV Module

Max Power: 450W/550W

25 years power output guarantee


The Details of 10KW-20KW Off-Grid Solar Storage System


  • The system is specially designed for high-power electrical appliances to ensure stable operation when the electrical appliances are turned on

    at the same time.

  • Solar panels use cells with a conversion efficiency of up to 22%. The same number of solar panels will generate more power.

  • It provides two options of both lead-acid/gel batteries and lithium batteries, which can be chosen based on the system budget and using conditions flexibly.

  • The optional WIFI monitoring module can monitor the power generation and operation of the system through the mobile phone APP.





The Specification of the 10KW-20KW Off-Grid Hybrid Solar Storage System

Model

OFF-SGHP-10KW

OFF-SGHP-15KW

OFF-SGHP-20KW

Average daily generation

34-39KWH

40KWH

60KWH

Rated Loads Capacity

10KW

15KW

20KW

Solar Panel

20pcs 450w

18pcs 550w

27pcs 550w

Solar Inverter

2pcs 5KW

1pcs 15KW

1pcs 20KW

Battery

16pcs 12V250AH gel battery /

2pcs-48V200AH LifePo4 Battery

16pcs 12V250AH Gel battery

32pcs 12V200AH Gel battery

Charge controller

96v 80A

96V 100A

192v 100A

PV Array Combiner

2pcs

1pcs

1pcs

Solar Panel Rack

Roof-type mounting rack including complete fittings, aluminum alloy (Rack can be customized per request)


The Production of 10KW-20KW Solar Storage System

Solar power system accessories are on mass production. Our company strictly follows the international standards for solar products production and carries out a detailed division of labor for the assembly process of each accessory to ensure that each process has quality inspections. The final product will also undergo at least 48 hours of continuous aging to ensure that every solar component can meet the client's requirements.




Products
FAQs of 10KW-20KW Off Grid Solar Power Storage System

FAQs of 10KW-20KW Off Grid Solar Power Storage System

  • Q
    How much space does a 10kw solar system need?
    A

    The amount of space required for a 10 kW solar system can vary depending on the type and efficiency of the solar panels, as well as the mounting system used for installation. Anern 10kw solar power system need around 20pieces of 450w half cut cell monocrystalline pv module, each with an area of around 2.9 square meters, for a total area of 41.8 square meters. This is just an estimate and the actual size can vary depending on the specific factors mentioned above.

  • Q
    How big is a 20kw solar system?
    A

    The size of a 20 kW solar system can vary depending on the efficiency of the solar panels and the amount of space available for installation. Anern 20kw solar power system need around 27pieces of 550w half cut cell monocrystalline pv module, each with an area of around 2.42 square meters, for a total area of 65.34 square meters.  The actual size may also depend on factors such as the type of mounting system used and the layout of the solar panels.

  • Q
    How many kwh does a 20kw solar system produce?
    A

    The amount of electricity produced by a 20 kW solar system can vary depending on various factors, such as the location, weather conditions, and the efficiency of the solar panels. However, as a rough estimate, a 20 kW solar system can produce around 56-62 kWh (kilowatt-hours) of electricity per day, on average, assuming around 4-5 hours of peak sunlight hours. This can add up to around 20,160-22,620 kWh per year. It's important to note that this is only an estimate and the actual output can vary based on several factors.

  • Q
    How much does a 10kw solar system produce per day?
    A

    The amount of electricity produced by a 10 kW solar system can vary depending on several factors, such as the location, weather conditions, and the efficiency of the solar panels. On average, a 10 kW solar system can produce around 20-36 kWh (kilowatt-hours) of electricity per day, assuming around 4-5 hours of peak sunlight hours. However, the actual output can vary based on several factors, such as the orientation and tilt of the solar panels, shading, and weather conditions.
