Anern Nplus series 24v 48v lithium battery is a high-performance wall-mounted lithium battery pack designed for modern residential and light commercial solar energy storage systems. Available in 5kwh, 10kwh, and 15kwh capacities, the Nplus lithium battery is built using advanced LiFePO4 (Lithium Iron Phosphate) chemistry, offering excellent thermal stability, safety, and longevity.
This 5kWh 10kwh 15kwh LiFePO4 battery is the ideal choice for homes, off-grid installations, and small businesses seeking backup power or load shifting from their solar PV systems.
◆ Long service life over 8 years;
◆ Modular design, small size and light weight;
◆ One key switch machine, the operation is more convenient;
◆ Suitable for long-term charge and discharge cycles;
◆ Adopt multi-level energy consumption management;
◆ Multiple parallel machines, automatic address acquisition without manual operation;
◆ Support high-current charging and discharging;
◆ Front operation and fornt wiring are convenient for installation and maintenance;
◆ Adopt high-performance processor, international brand devices, high reliability;
◆ Multiple communication interfaces: RS485, RS232, CAN;
◆ Highly compatible BMS, seamless connection with energy storage inverter;
◆ Integrates advanced active balance function;
◆ Wall mounted and floor mounted installation for optional;
◆ Safety certification: CE, ROHS, UN38.3, MSDS, etc.

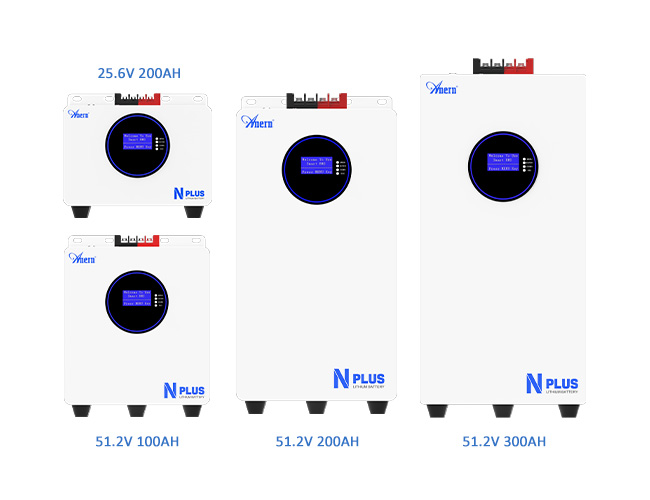

| Model | AN-LPB-Nplus-24200 | AN-LPB-Nplus-48100 | AN-LPB-Nplus-48200 | AN-LPB-Nplus-48300 | |
| Battery Type | LiFePO4 | ||||
| Typical Capacity(AH) | 200AH | 100AH | 200AH | 300AH | |
| Typical Voltage(V) | 25.6V | 51.2V | 51.2V | 51.2V | |
| Energy storage(Kwh) | 5Kwh | 5Kwh | 10Kwh | 15Kwh | |
| Voltage Working Range(V) | 22.4-29.2V | 44.8-58.4V | 44.8-58.4V | 44.8-58.4V | |
| Working Temperature(°C) | Charge: 0-+55°C Discharge: -20-+60°C | ||||
| Storage Temperature(°C) | -20-+40°C | ||||
| Standard Charge Current(A) | 0.5C | ||||
| Max. Charge Current(A) | 100A | 50A | 100A | 150A | |
| Max. Discharge Current(A) | 200A | 100A | 200A | 200A | |
| SOC Accuracy | <8% | ||||
| Cycle Life | 5000 cycles | 10000 cycles | |||
| Dimension(mm) | 370*400*280mm | 370*400*280mm | 370*670*280mm | 800*380*250mm | |
| IP Grade | IP54 | ||||
| Cooling | Nature | ||||
| Communication | RS232, RS485, CAN | ||||
| Certifications | CE, ROHS, UN38.3, MSDS | ||||
